Genesis 22065509 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
22065509|WG-22065509

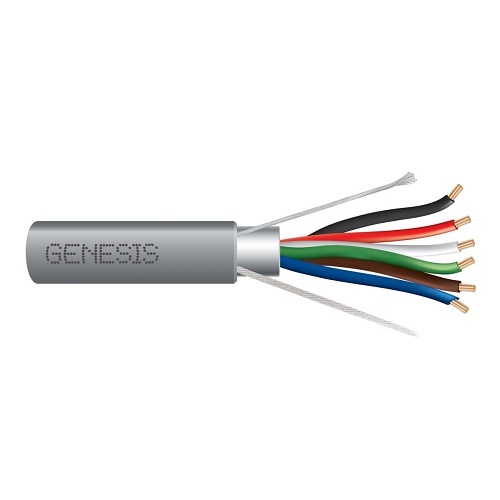

Genesis 22065509 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
22065509|WG-22065509
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors

Genesis
Genesis 22065509 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
22065509 | WG-22065509
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22065509 22/6 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 619172021104
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22065509 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22065509 Packaged Quantity 1 Product Model 22065509 Product Name 22065509 - 22 AWG 6C STR Shielded Riser, Gray, 500 FT. Pull Box Product Type Access & Security Cable Weight 10.70 lb
-
American Wire Gauge 22AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 3 Conductor Material Bare Copper Connector on First End Bare Wire Core/Cladding Diameter 22/6 Device Supported Audio Devices, Low Voltage applications, Security Impedance 59 ohms Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 6 Number of Pairs 3 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-12065509 Model Number Replaces 12065509
-
Cable Length 500' Color Gray Insulation Material PP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
