Product Overview

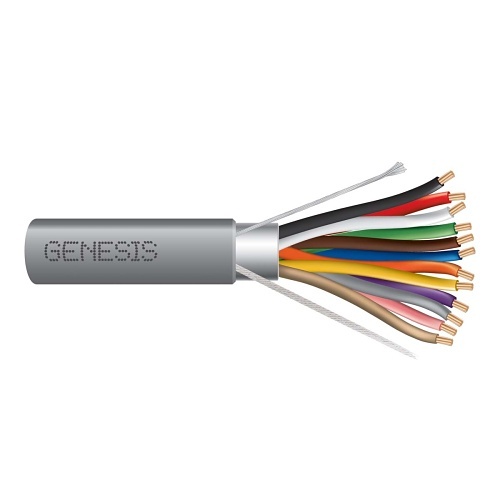

This Genesis® cable features 12 stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
General Information
Name : Genesis 22091009 22/12 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 1000' (304.8m), Reel, Gray , Genesis
Category : Riser Shielded Cables
UPC Code : 619172045667
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : WG-22091009
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 22091009
Packaged Quantity : 1
Product Model : 22091009
Product Name : 22091009 - 22 AWG 12C STR Shielded Riser, Gray, 1000 FT. Reel
Product Type : Access & Security Cable
Weight (Approximate) (g) : 16147.888
Technical Information
American Wire Gauge : 22AWG
Cable Listing : CL3R|FPLR|CMR|FT4|Sunlight Resistant
Cable Type : Multi-conductor/Multi-pair
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Core/Cladding Diameter : 22/12
Device Supported : Audio Devices, Low Voltage Applications, Security
Jacket Type : FT4, Riser
Material : Bare Copper
Number of Conductors : 12
Number of Pairs : 6
Shielding : Yes
Solid or Stranded : Stranded
Physical Characteristics
Cable Length : 1000'
Cable Length (mm) : 304800
Color : Gray
Insulation Material : PP
Package Type : Reel
Weight (Approximate) : 35.60 lb
Warranty
Limited Warranty : 3 Year; 3-for-1
Miscellaneous
Environmental Certification : ROHS
Environmentally Friendly : Yes
Features : Stranded, Sunlight Resistant, UV resistant
Indoor/Outdoor : Indoor
TAA Compliant : yes
