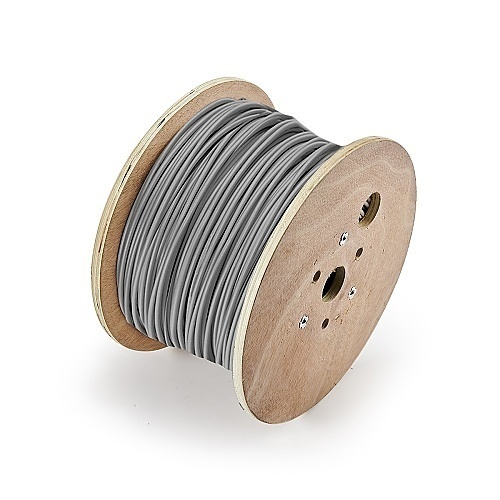

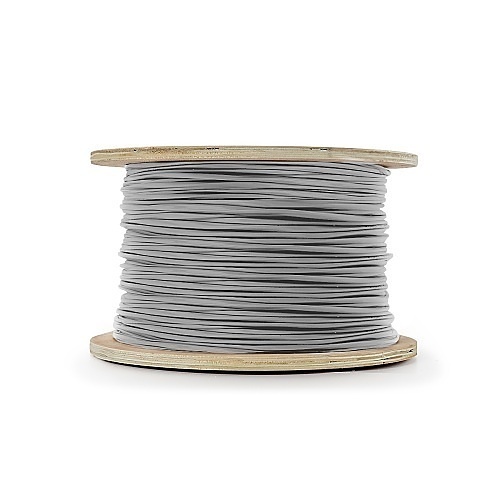

Genesis 21231009 14/2 Stranded Unshielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
21231009|WG-21231009
Genesis 21231009 14/2 Stranded Unshielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
21231009|WG-21231009
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket

Genesis
Genesis 21231009 14/2 Stranded Unshielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
21231009 | WG-21231009
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Unshielded Multiconductor Cables offer a versatile solution for various signal and limited-power transmission applications.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 21231009 14/2 Stranded Unshielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Unshielded Cables
UPC Code: 619172012478
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-21231009 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 21231009 Packaged Quantity 1 Product Model 21231009 Product Name 21231009 - 14 Awg 2C Str Riser, Gray, 1000 Ft. Reel Product Type Access & Security Cable Weight 34.90 lb
-
American Wire Gauge 14AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Alarms, Audio Cables, Security Device Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-11271009 Model Number Replaces 11271009
-
Cable Length 1000' Color Gray Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
