Genesis 53071101 RG6 CCS 75 Ohm Coaxial with Quad-Shield Cable, Riser, CATVR, FT4, 1000' (304.8 m) Pull Box, White
53071101|WG-53071101
Genesis 53071101 RG6 CCS 75 Ohm Coaxial with Quad-Shield Cable, Riser, CATVR, FT4, 1000' (304.8 m) Pull Box, White
53071101|WG-53071101
Key Features
- Solid Copper Clad Steel center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation

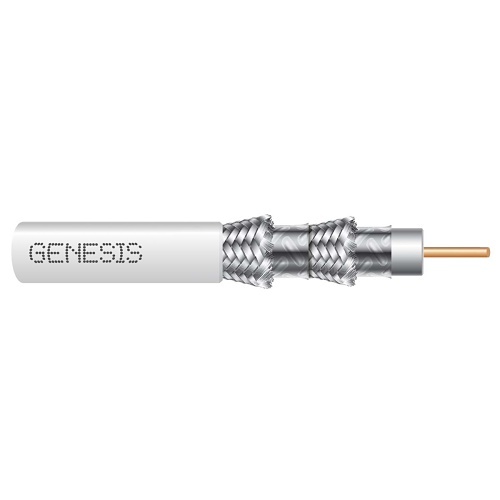

- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
Key Features
- Solid Copper Clad Steel center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Solid Copper Clad Steel center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
Genesis
Genesis 53071101 RG6 CCS 75 Ohm Coaxial with Quad-Shield Cable, Riser, CATVR, FT4, 1000' (304.8 m) Pull Box, White
53071101 | WG-53071101
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Broadband CATV Coaxial Cables deliver exceptional signal quality and protect from interference for satellite, cable, and broadcast TV applications.
Main Features
- Solid Copper Clad Steel center conductor for excellent transmission up to 3 GHz
- Polyethylene insulation
- Quad-shielded (Aluminum Foil + Aluminum Braid + Aluminum Foil + Braid)
- PVC jacket
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 53071101 RG6 CCS 75 Ohm Coaxial with Quad-Shield Cable, Riser, CATVR, FT4, 1000' (304.8 m) Pull Box, White
Category: Genesis, Wire & Cable, Coaxial Cables
UPC Code: 781410915657
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-53071101 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 53071101 Packaged Quantity 1 Product Model 53071101 Product Name 18 AWG Copper-Clad Steel RG6, Quad-Shield, Riser CATVR/FT4 Product Type Coaxial Cable
-
American Wire Gauge 18AWG Cable Rating Riser Cable Type RG-6 Conductor Count 1 Conductor Material CCS Device Supported Video Device Impedance 75 ohms Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 1 Shielding Yes Solid or Stranded Solid
-
TAA Compliant No
-
Cable Length 1000' Color White Insulation Material PE Material Copper Clad Steel Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Sunlight Resistant Indoor/Outdoor Indoor
