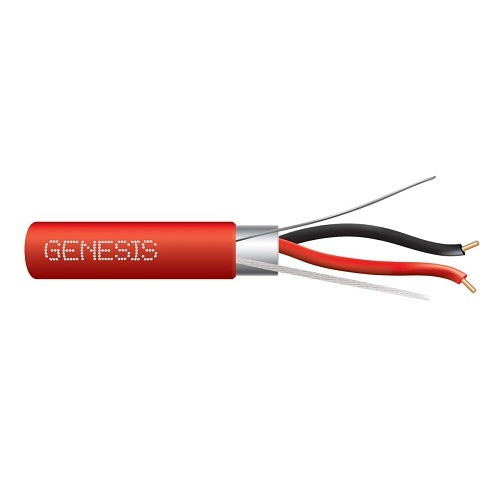

Genesis 46021004 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
46021004|WG-46021004
Genesis 46021004 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
46021004|WG-46021004
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors

Genesis
Genesis 46021004 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
46021004 | WG-46021004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 46021004 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Shielded Cables
UPC Code: 619172016629
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-46021004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 46021004 Packaged Quantity 1 Product Model 46021004 Product Name 46021004 - 18 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Reel Product Type Fire Alarm Cable Weight 17.80 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 2 Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Device Supported Fire Alarm Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Solid
-
TAA Compliant Yes
-

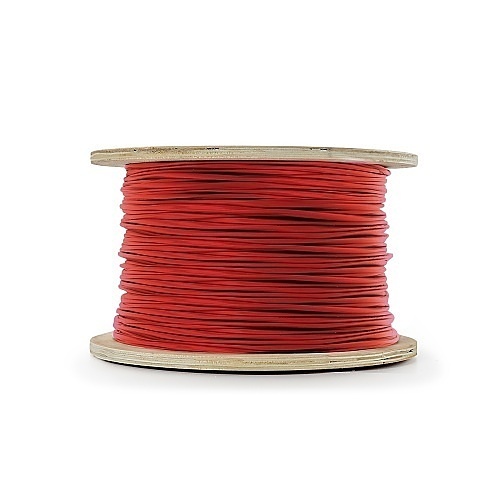

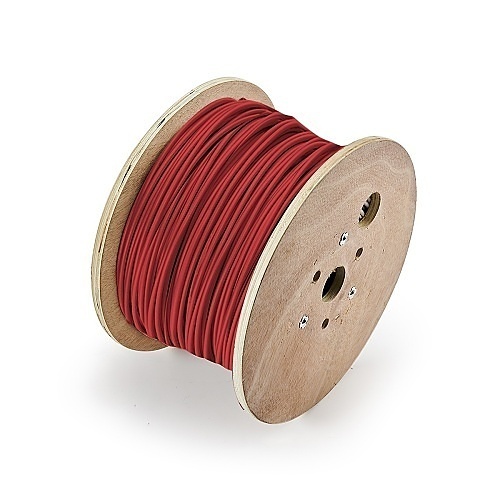

Cable Length 1000' Color Red Insulation Material LS-PVC Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
