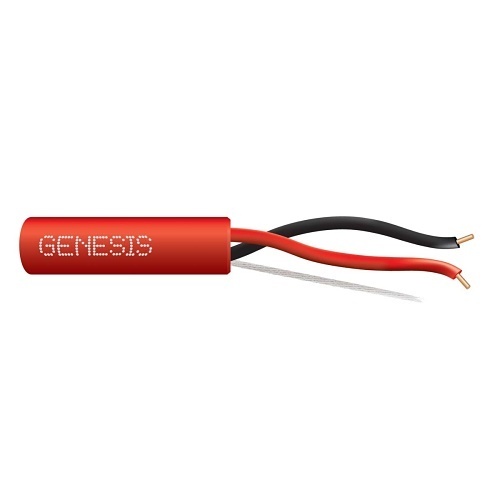

Genesis 45065504 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Pull Box, Red
45065504|WG-45065504
Genesis 45065504 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Pull Box, Red
45065504|WG-45065504
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
Genesis
Genesis 45065504 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Pull Box, Red
45065504 | WG-45065504
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 45065504 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 500' (152.4 m) Pull Box, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 619172016476
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45065504 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45065504 Packaged Quantity 1 Product Model 45065504 Product Name 45065504 Control Cable Product Type Fire Alarm Cable Weight 7.80 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Jacket Material LS PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-

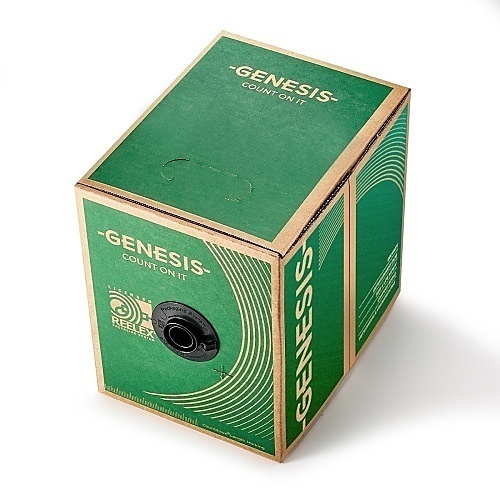

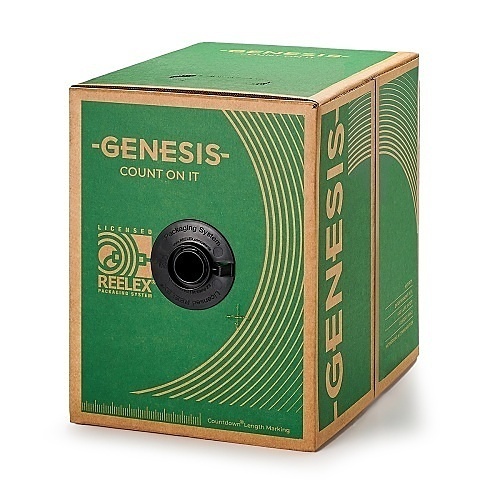

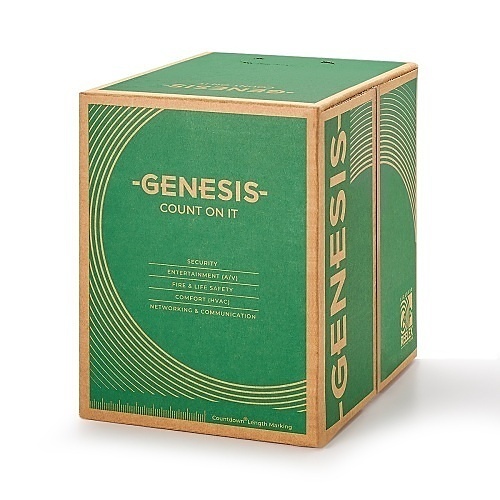

Cable Length 500' Color Red Insulation Material LS-PVC Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Indoor/Outdoor Indoor
