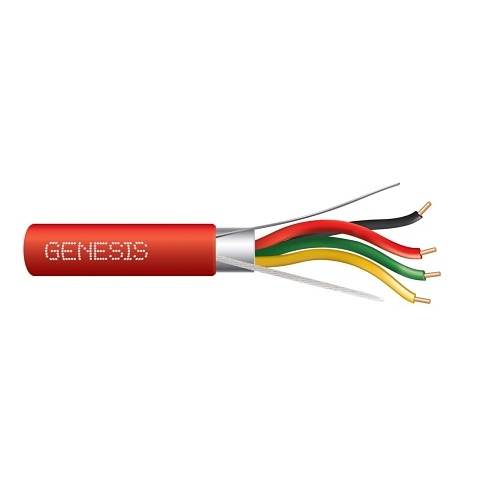

Genesis 44035504 18/4 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
44035504|WG-44035504
Genesis 44035504 18/4 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
44035504|WG-44035504
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Genesis
Genesis 44035504 18/4 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
44035504 | WG-44035504
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 44035504 18/4 Solid Shielded Fire Alarm Cable, Riser, FPLR, 500' (152.4 m) Pull Box, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Non-Plenum Shielded Cables
UPC Code: 619172031066
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-44035504 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 44035504 Packaged Quantity 1 Product Model 44035504 Product Name 18 AWG 4C SOL Shielded Riser, Red, 500 ft. Pull Box Product Type Fire Alarm Cable Weight 13.70 lb
-
American Wire Gauge 18AWG Cable Rating Riser Conductor Count 4 Connector on First End Bare Wire Core/Cladding Diameter 18/4 Device Supported Fire Alarm Jacket Material PVC Jacket Type Plenum Number of Conductors 4 Number of Pairs 1 Shielding Yes Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 500' Color Red Insulation Material PP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Sunlight Resistant, UV Resistant Indoor/Outdoor Indoor
