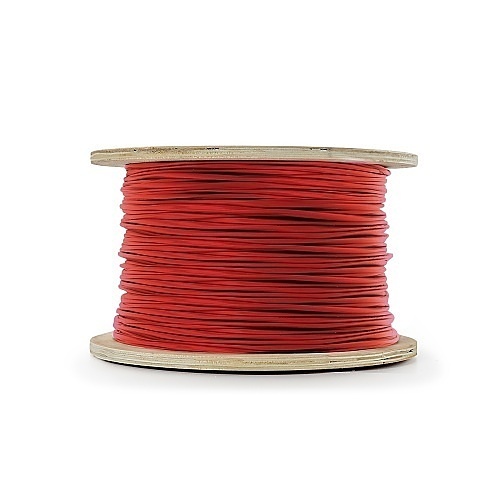

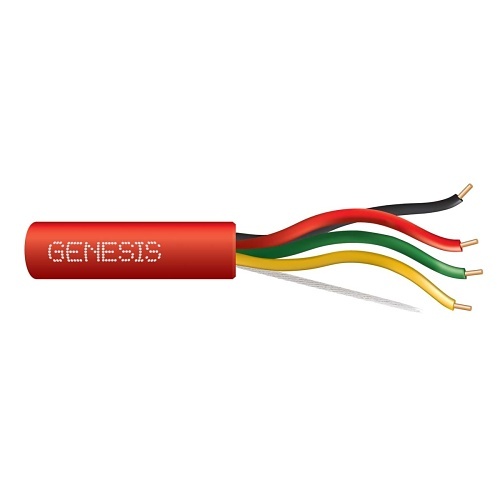

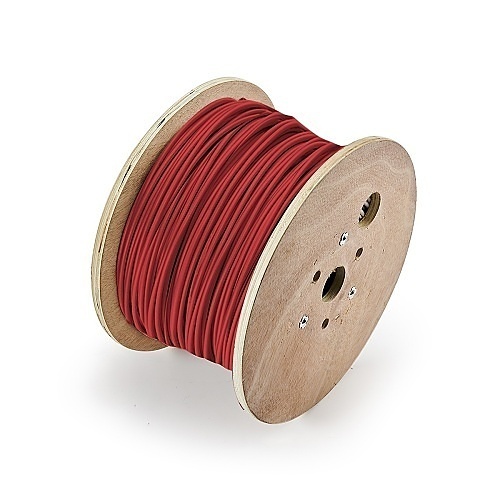

Genesis 43071004 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red
43071004|WG-43071004
Genesis 43071004 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red
43071004|WG-43071004
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Genesis
Genesis 43071004 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red
43071004 | WG-43071004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 43071004 18/4 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Non-Plenum Unshielded Cables
UPC Code: 619172016322
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-43071004 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 43071004 Packaged Quantity 1 Product Model 43071004 Product Name 43071004 Control Cable Product Type Fire Alarm Cable Weight 25.70 lb
-
American Wire Gauge 18AWG Cable Rating Riser Conductor Count 4 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Alarm, Fire Alarm Jacket Material PVC Jacket Type Plenum Number of Conductors 4 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
ADI Part Number Replaces RM-294M1R Model Number Replaces 294M1R
-
Cable Length 1000' Color Red Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
