Belden DOSP6AF 0101000 CAT6A Premise Horizontal Cable, 4/23 Solid BC, F/UTP, OSP Rated, Outdoor, 1000'(304.8m), Reel, Black
DOSP6AF 0101000|7B-DOSP6AF1
Belden DOSP6AF 0101000 CAT6A Premise Horizontal Cable, 4/23 Solid BC, F/UTP, OSP Rated, Outdoor, 1000'(304.8m), Reel, Black
DOSP6AF 0101000|7B-DOSP6AF1
Key Features
- Voltage rating 300V
- Outdoor, Water Exposure, Outdoor
- IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Key Features
- Voltage rating 300V
- Outdoor, Water Exposure, Outdoor
- IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Voltage rating 300V
- Outdoor, Water Exposure, Outdoor
- IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Belden
Belden DOSP6AF 0101000 CAT6A Premise Horizontal Cable, 4/23 Solid BC, F/UTP, OSP Rated, Outdoor, 1000'(304.8m), Reel, Black
DOSP6AF 0101000 | 7B-DOSP6AF1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

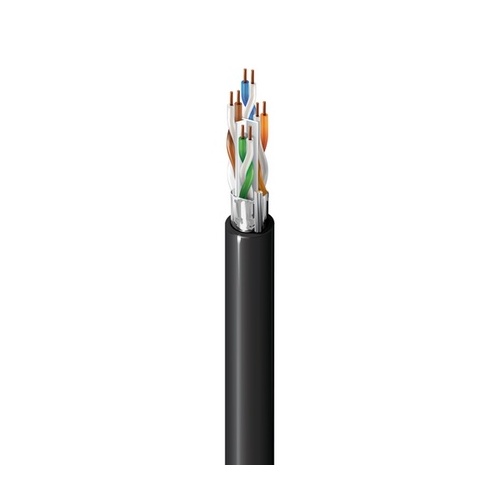

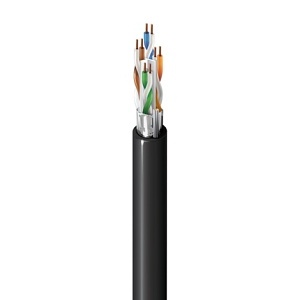

Category 6A Premise Horizontal Cable, OSP Rated, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Gel Free
Main Features
- Voltage rating 300V
- Outdoor, Water Exposure, Outdoor
- IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- Data Category 6A
- ANSI/TIA-568.2-D Category 6A
- ISO/IEC Compliance 11801 ed 2.2 (2011) Class EA
- CENELEC Compliance Segregation class according EN50174-2 = a
General Information
Name: Belden DOSP6AF 0101000 CAT6A Premise Horizontal Cable, 4/23 Solid BC, F/UTP, OSP Rated, Outdoor, 1000'(304.8m), Reel, Black
Category: Belden, Wire & Cable, Network Cables, Category 6A Network Cables
UPC Code: 612825491835
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 7B-DOSP6AF1 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number DOSP6AF 0101000 Packaged Quantity 305 Product Name Category 6A OSP Cable, 4 Pair, F/UTP, Gel Free Product Type Network Cable
-
American Wire Gauge 26AWG Cable Rating Outdoor Cable Type Category 6a Conductor Count 8 Conductor Material Bare Copper Device Supported IP Camera, Network Device Jacket Material PE, PO, PP Number of Conductors 8 Number of Pairs 4 Shielding Yes Solid or Stranded Solid
-
Storage Temperature (T-T) -40-167°F
-
Data Transfer Rate 10 Gbit/s
-
Cable Length 1000' Color Black Insulation Material PE, PO, PP Material Polyolefin Package Type Reel
-
Length 1000'
-
Country of Origin MX Features Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Gel-free, Minimized Near-End Crosstalk (NEXT), PoE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power-sum Alien Near End Crosstalk (PSANEXT), Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF), Power-sum Equal Level Far-End Crosstalk (PSELFEXT), Power-sum Near End Crosstalk (PSNEXT), Stranded Indoor/Outdoor Outdoor
