Bose Professional Self Powered Digital Beam Steerable Array Loudspeaker, Black
MSA12X|1B-787856111
Bose Professional Self Powered Digital Beam Steerable Array Loudspeaker, Black
MSA12X|1B-787856111
Key Features
What's Included
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 W (12 x 50 W) of Alification
- Family sound profile with the Panaray MA12EX Loudspeaker
- Twelve (12) x 2.25" full-range transducers with 58 Hz - 18 kHz frequency range
Key Features
What's Included
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 W (12 x 50 W) of Alification
- Family sound profile with the Panaray MA12EX Loudspeaker
- Twelve (12) x 2.25" full-range transducers with 58 Hz - 18 kHz frequency range
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 W (12 x 50 W) of Alification
- Family sound profile with the Panaray MA12EX Loudspeaker
- Twelve (12) x 2.25" full-range transducers with 58 Hz - 18 kHz frequency range
Bose Professional
Bose Professional Self Powered Digital Beam Steerable Array Loudspeaker, Black
MSA12X | 1B-787856111
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

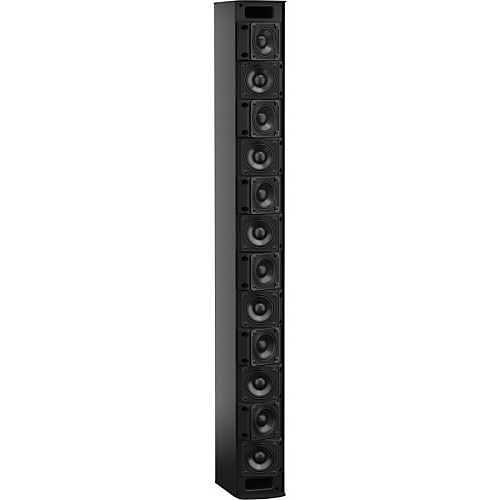

The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X's modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.
Main Features
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 W (12 x 50 W) of Alification
- Family sound profile with the Panaray MA12EX Loudspeaker
- Twelve (12) x 2.25" full-range transducers with 58 Hz - 18 kHz frequency range
- Dante digital audio network interface and line-level analog input
- Articulated Array configuration allows wide, 160° horizontal coverage
- Modular design allows building vertical arrays using 1-3 units
- Multiple algorithms for beam steering control - designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
- Supports independent level and EQ control of 2 separate beams per array
- Integrated mounting bracket allows up 90° of horizontal yaw adjustment
- Advanced steering and acoustic coverage prediction using Bose Modeler software
General Information
Name: Bose Professional Self Powered Digital Beam Steerable Array Loudspeaker, Black
Category: Bose Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 017817772846
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number 1B-787856111 Brand Name Bose Professional Manufacturer Bose Corporation Manufacturer Part Number 787856-1110 Product Line Panaray Product Model MSA12X Product Name Panaray MSA12X Steerable Array Loudspeaker Product Type Speaker System Weight 31.97 lb
-
Maximum Frequency Response 17 kHz Minimum Frequency Response 75 Hz RMS Output Power 600W
-
Color Black Depth 8.1" Height 38.7" Width 4.2"
-
Power Source AC
-
Mount Type Wall Mount
-
Features Digital Signal Processing (DSP), Equalizer Indoor/Outdoor Indoor Package Contents - Panaray MSA12X Steerable Array Loudspeaker
- 1 x Power Cord
- 1 x Power Interconnect Cable
- 1 x RJ50 Expansion Cable
- 1 x Phoenix Connector
- 2 x Wall/Speaker-Mount Bracket Sets
- and more below
