Product Overview

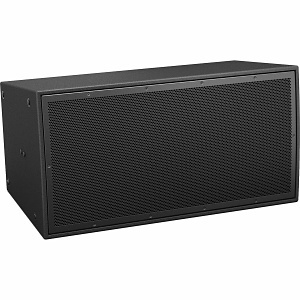

Bose Professional ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations-sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener. Nine coverage patterns are available. Choose from modules with 10 deg, 20 deg, or 40 deg vertical coverage and easily swap between 60 deg, 80 deg, or 100 deg horizontal waveguides to build arrays that are lighter, require less installation time, and can lower overall system costs by delivering full coverage with fewer modules.
Key Features:
- Improve sound quality, consistency, and vocal claritywith DeltaQ array technology, which allows directivity, or "Q," to vary in each module to more precisely match coverage to audience area
- Easily customize horizontal coveragewith replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays
- Deliver high-SPL, long-throw music reproduction and vocal intelligibilitywith a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers
- Rated for direct-exposureoutdoor installations, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded input cover
- Provide full coverage with fewer modules- 10 deg, 20 deg, and 40 deg modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays
- Reduce commissioning timeby using 40 deg modules for point-source applications and 10 deg, 20 deg and 40 deg modules for line arrays-all with the same transducers for consistent tonal balance
- Adapt to a variety of configurations- all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs
- Streamline the design processby combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP
- Save time during installationusing Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames
- EN54 Certified:EN54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics.
Main Features
- DeltaQ array technology for improved sound quality and vocal clarity
- Customizable horizontal coverage with replaceable waveguides
- High-SPL, long-throw music reproduction with 14-inch neodymium woofer
- Rated for direct-exposure outdoor installations
- Three-layer stainless steel grille and water-resistant woofer cone
- Full coverage with fewer modules, reducing system costs
- Bi-amp capability, passive crossover, and 70/100V transformer inputs
- Compatible with Bose Professional accessory mounting hardware
- EN54-24: 2008 certified for voice alarm systems
General Information
Specifications
-
ADI Part Number 1B-808650851 Brand Name Bose Professional Manufacturer Bose Corporation Manufacturer Part Number 8086508510 Product Line ArenaMatch Product Model AM10 Product Name ArenaMatch AM10 DeltaQ Array Loudspeaker Product Type Speaker Weight (Approximate) (g) 36300 Â
-
Impedance 8 ohms Impedance (Ohm) 8.000 Maximum Frequency Response (Hz) 16000 Minimum Frequency Response (Hz) 65 PMPO Output Power (W) 2400.000 Sensitivity 105 dB Sensitivity (dB) 105 Tweeter Driver Material Titanium/Neodymium Woofer Driver Material Neodymium Woofer Driver Size 14" Woofer Driver Size (mm) 355.6 Â
-
Maximum Frequency Response 16 kHz Minimum Frequency Response 65 Hz PMPO Output Power 2400 W RMS Output Power 600W RMS Output Power (W) 600 Â
-
Application/Usage Alarm, Arena, Bar, Education, Entertainment Center, Fire Alarm, Hospitality, House of Worship, Restaurant, Sports Bar, Stadium Color Black Color Family Black Depth 16.54" Depth (mm) 420 Height 16.1" Height (mm) 409 Product Color Black Speaker Installation Outdoor Weight (Approximate) 80.03 lb Width 30.8" Width (mm) 783 Â
-
Compatibility Alarm, Arena, Bar, Education, Entertainment Center, Fire Alarm, Hospitality, House of Worship, Restaurant, Sports Bar, Stadium Package Contents ArenaMatch AM10 DeltaQ Array Loudspeaker U-Bracket Array Suspension Kits Waveguide Kits Â
