C2G CG29203 Bulk 18 AWG Plenum Shielded Speaker Wire, 25' (7.6m), White
CG29203|2D-CG29203
C2G CG29203 Bulk 18 AWG Plenum Shielded Speaker Wire, 25' (7.6m), White
CG29203|2D-CG29203
Key Features
- Plenum-rated for educational and commercial use
- 18 AWG twisted pair copper cables
- Color-coded for easy identification
Key Features
- Plenum-rated for educational and commercial use
- 18 AWG twisted pair copper cables
- Color-coded for easy identification
Key Features
- Plenum-rated for educational and commercial use
- 18 AWG twisted pair copper cables
- Color-coded for easy identification

C2G by Legrand
C2G CG29203 Bulk 18 AWG Plenum Shielded Speaker Wire, 25' (7.6m), White
CG29203 | 2D-CG29203
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

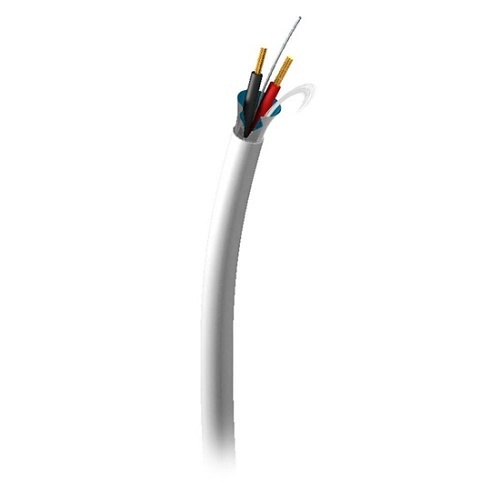

Audio/video installations in educational and commercial settings often require plenum-rated cabling. . This wire is constructed from two color-coded 18 AWG twisted pair copper cables (one red, one black) to ensure easy identification. The speaker wire is twisted within a naturally colored jacket for easier pulling and installation.\n\nEach conductor is made from seven strands of 26 AWG copper wires and features 100% foil shield with stranded copper drain wire for easy grounding connections. CMP rating meets building code requirements to run within walls and air plenums without the need for conduit. Wire shows footage markers for easy length tracking.\n\nNote: Always check with your local authority on building requirements to verify cable requirements before beginning any installation.
Main Features
- Plenum-rated for educational and commercial use
- 18 AWG twisted pair copper cables
- Color-coded for easy identification
- 100% foil shield with copper drain wire
- CMP rating for in-wall and plenum use
- Footage markers for length tracking
- Suitable for audio/video installations
General Information
Name: C2G CG29203 Bulk 18 AWG Plenum Shielded Speaker Wire, 25' (7.6m), White
Category: C2G by Legrand, Wire & Cable, Speaker Cables, Plenum Audio Cables
UPC Code: 757120292036
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 2D-CG29203 Brand Name C2G by Legrand Manufacturer Part Number CG29203
-
American Wire Gauge 18AWG, 26AWG Cable Rating Plenum Solid or Stranded Stranded
-
NDAA Compliant Yes TAA Compliant No
-
Color White
-
Environmental Certification REACH, ROHS, Prop 65, TSCA, NDAA 889
