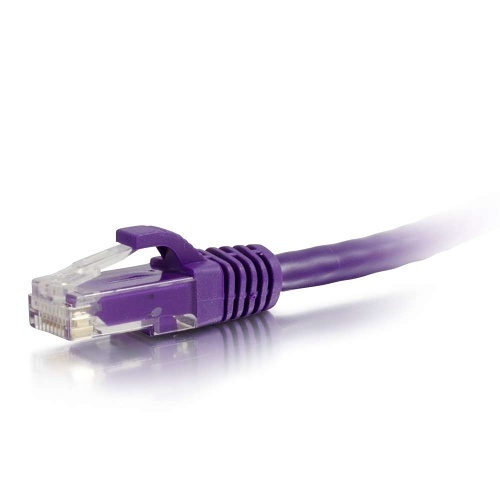

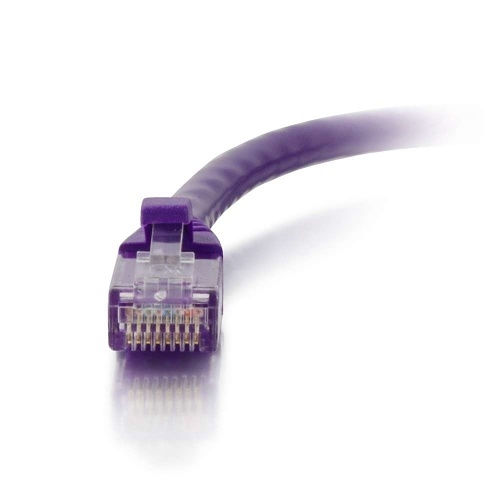

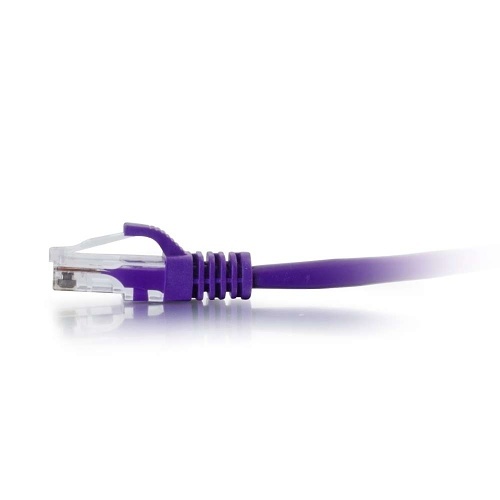

C2G CG31347 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, M/M, 5' (1.5m), Purple
CG31347
|2D-CG31347
Shop all C2G by Legrand
C2G CG31347 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, M/M, 5' (1.5m), Purple
CG31347 | 2D-CG31347
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
With Cables To Go's Cat6 550Mhz Snagless Patch Cables you can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video. These cables will deliver stable performance to 550 MHz. Each meets EIA/TIA Cat 6 TIA/EIA- 568-B-2.1, draft 9 standards. These cables will handle bandwidth intensive applications up to 550 Mhz and beyond and drastically reduce both impedance and structural return loss (SRL) as compared to standard 100 Mhz wire! Constructed with high-quality cable and a shortened body plug, this design will keep Near-End Crosstalk (NEXT) levels to a minimum. The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief. Cables To Go Cat6 550Mhz Snagless Patch Cables are available in a variety of colors to easily color-code your network installation. \r\n- Connector: 50-micron gold plated RJ-45 Male to Male \r\n- Conductor: 24 AWG Stranded Copper \r\n- Jacket: PVC \r\n- Molded, Snag-Free boot prevents unwanted cable snags \r\nApplications: \r\n- Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) \r\n- 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN \r\n- 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM \r\n- Voice; T1 \r\n- High bandwidth applications such as 622 ATM, Wideband\r\n- Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other twisted-pair applications \r\n- Standard: Category 6 TIA/EIA- 568-B-2.1, draft 9
Main Features
- Snagless design protects clips when plugging and unplugging
- Standard RJ45 connectors and unshielded twisted pair wires
- Lifetime Warranty
General Information
Name: C2G CG31347 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, M/M, 5' (1.5m), Purple
Category: C2G by Legrand, Wire & Cable, Pro AV, Network Patch Cords, Commercial Connector Cables, Pro Patch Cables, Category 6 Patch Cords
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 2D-CG31347 Brand Name C2G by Legrand Connector Gender Male Manufacturer Part Number CG31347
American Wire Gauge 24AWG Cable Type Category 6 Connector on First End RJ-45 Connector on Second End RJ-45 Jacket Material PVC Shielding No Solid or Stranded Stranded
NDAA Compliant Yes TAA Compliant No
Cable Length 5' Color Purple
Limited Warranty Lifetime
Certifications NDAA 889, Prop 65, REACH, ROHS, TSCA Country of Origin CN Environmental Certification REACH, ROHS, Prop 65, TSCA, NDAA 889
