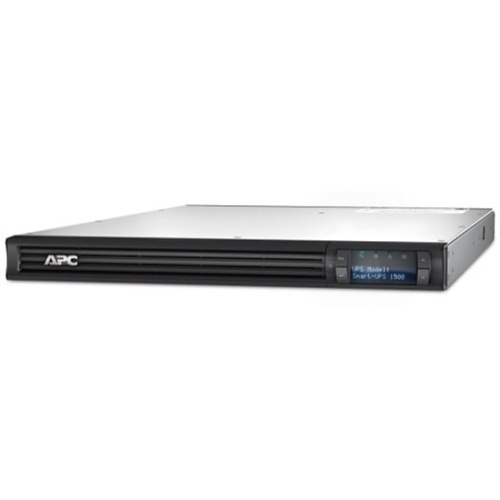

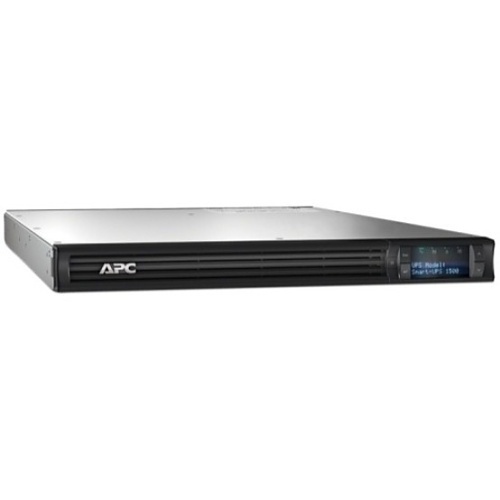

APC SMT1500RMI1U Smart-UPS 1500VA LCD Rackmount 1U 230V
SMT1500RMI1U
|2G-1500RMI1U
Shop all APC by Schneider Electric
APC SMT1500RMI1U Smart-UPS 1500VA LCD Rackmount 1U 230V
SMT1500RMI1U | 2G-1500RMI1U
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
Main Features
- High online efficiency-Reduces utility costs, generates less heat
- Green mode-Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- High frequency design-Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
- Energy meter-Provides actual kilowatt hours of usage for energy conscious users
- Predictive replace battery date-Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Intuitive LCD interface-Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- Multiple switched outlet groups-Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Pure sine wave output on battery-Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- Cold-start capable-Provides temporary battery power when the utility power is out
- SmartSlot-Customize UPS capabilities with management cards
General Information
Name: APC SMT1500RMI1U Smart-UPS 1500VA LCD Rackmount 1U 230V
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-1500RMI1U Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SMT1500RMI1U Packaged Quantity 1 Product Line Smart-UPS Product Name Smart-UPS 1500VA LCD RM 1U 230V Product Series SMT Product Type Line-interactive UPS
Backup/Run Time (Full Load) 5-Minute Backup/Run Time (Half Load) 17-Minute Energy Saving Yes Hot Swappable Yes Input Receptacle Type IEC 320 C14 Number of Battery & Surge Outlets 6 Output Receptacle Type 2 IEC Jumpers, 4 IEC 320 C13 Output Voltage 230V Receptacle Detail 4 x IEC 60320 C13 Receptacle Type IEC 60320 C13
Battery Characteristics Spill-proof|Maintenance-free Battery Chemistry VRLA Battery Recharge Time 4-Hour Replaceable Battery Yes
Maximum Operating Temperature 113°F (45°C) Thermal Dissipation 34W
Network (RJ-45) Yes Serial Port Yes
Alarm Configurable Delay, Low Battery, On Battery
Color Black Depth 26.18" Height 1.73" Rack Height 1U Weight 53.11lb Width 17.01"
Input Voltage 230V Output Power 1500VA Plug/Connector Type IEC 60320 C14 Surge Energy Rating 540J Waveform Type Sine Wave
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery Limited Warranty 3-Year
Environmental Certification CE, EAC, RCM, UK PSTI, VDE, WEEE Environmentally Friendly Yes Package Contents CD with Software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, Warranty card
