APC AP4424A Netshelter Rack Automatic Transfer Switch, 32A, 230V
AP4424A
|2G-AP4424A
Shop All APC by Schneider Electric
APC AP4424A Netshelter Rack Automatic Transfer Switch, 32A, 230V
AP4424A | 2G-AP4424A
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

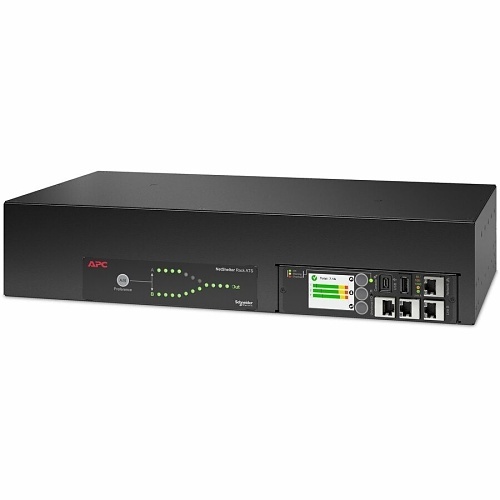

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
ADI Part Number 2G-AP4424A Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP4424A Product Line NetShelter Product Name NetShelter Automatic Transfer Switch Product Type Automatic Transfer Switch Sector Intrusion
Output Voltage 230V

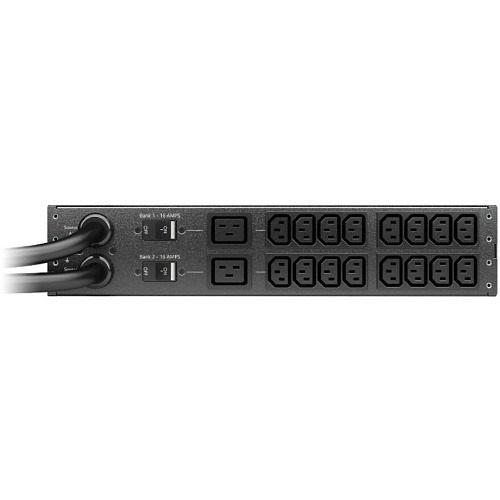

Receptacles 16 x IEC 60320 C13, 2 x IEC 60320 C19
Color Black Depth 9.29" Form Factor Rack Mount Height 3.46" Rack Height 2U Weight 15.30lb Width 17.01"
Input Voltage 230V Plug/Connector Type IEC 60309 32A 2P+E
Mount Type Rack Mount
Limited Warranty 2-Year
Environmental Certification California Proposition 65, EN 55022 class A, FCC Part 15 Class A, WEEE Environmentally Friendly Yes Package Contents - NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
