APC AP7568 Rack PDU, Basic, ZeroU, 12.5kW, 208V, 30x C13 and 6x C19 Outlets, 3' Cord
AP7568
|2G-AP7568
Shop All APC by Schneider Electric
APC AP7568 Rack PDU, Basic, ZeroU, 12.5kW, 208V, 30x C13 and 6x C19 Outlets, 3' Cord
AP7568 | 2G-AP7568
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

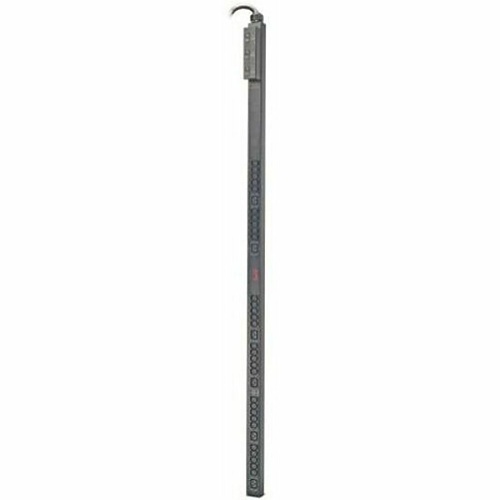

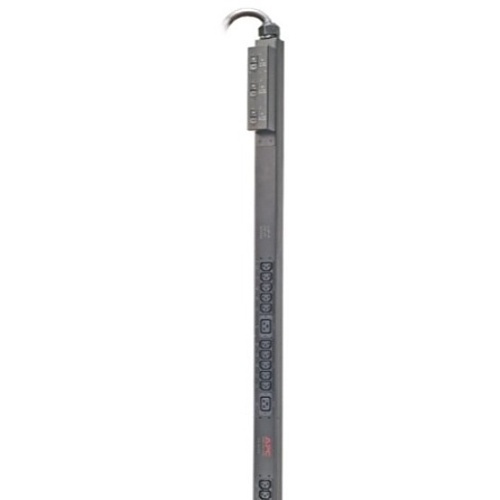

Basic Rack 12.5k VA PDU is power distribution for rack-mount equipment, with low cost power distribution, and multi-branch power input. This Basic Rack PDU that mount vertically, without tools in the rear channel of a NetShelter VX.
Main Features

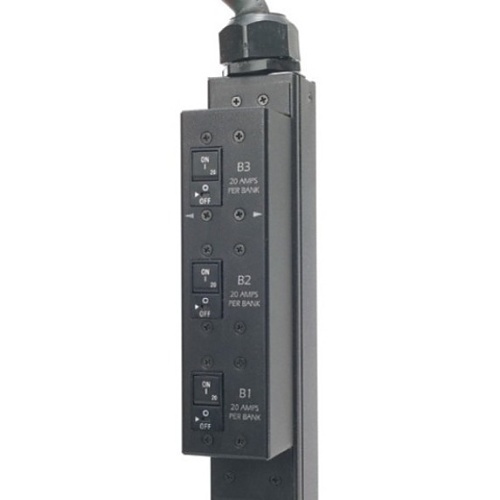

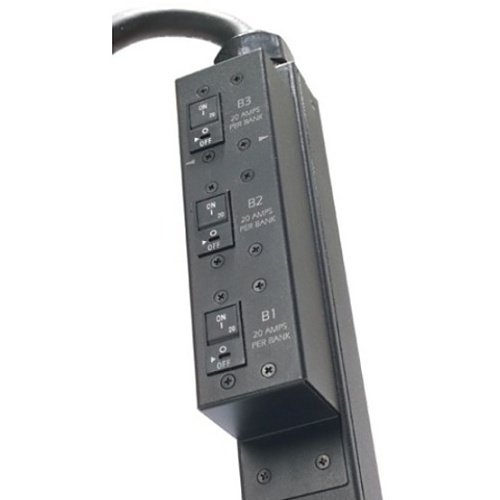

- Resettable circuit breakers-Enables a quick recovery from overload events
- Toolless Rack Mounting Capabilities-Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure
- Vertical Mounting Capabilities-Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack Units that mount vertically are optimized to fit in a NetShelter enclosures
General Information
Name: APC AP7568 Rack PDU, Basic, ZeroU, 12.5kW, 208V, 30x C13 and 6x C19 Outlets, 3' Cord
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP7568 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP7568 Packaged Quantity 1 Product Line Basic Rack Product Name Basic Rack 12.5k VA PDU Product Type PDU Sector Data Comm & Networking
Output Voltage 208V PDU Type Basic Receptacle Detail 30 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Color Black Depth 3.50" Height 70" Rack Height 0U Weight 15.32lb Width 2.20"
Input Voltage 208V Plug/Connector Type CS8365C
Mount Type Rack Mount
Limited Warranty 2-Year
Environmental Certification cUL Listed, UL Listed Environmentally Friendly Yes Package Contents - Basic Rack 12.5k VA PDU
- Cord retention bracket(s)
- Documentation CD
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
