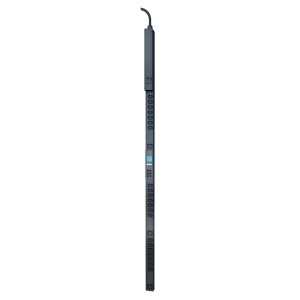

APC AP8453 NetShelter Metered-by-Outlet Rack PDU, 0U, 1PH, 7.4kW 230V 32A, 21x C13 and 3x C19 Outlets
AP8453
|2G-AP8453
Shop All APC by Schneider Electric
APC AP8453 NetShelter Metered-by-Outlet Rack PDU, 0U, 1PH, 7.4kW 230V 32A, 21x C13 and 3x C19 Outlets
AP8453 | 2G-AP8453
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Schneider Electric Rack Po wer Distribution Unit (PDU) distributes power to devices in a rack. The Rack PDU measures the load of the P DU, phase, banks, and each individual outlet. You can access the Rack PDU through Web, Telnet, SNMP, SSH, or StruxureWare interfaces for comprehensive configuration and monitoring functionality. The Network Port Sharing (NPS) feature allows up to four AP8XXX Rack PDUs to be conn ected together within a rack in order to share one IP address.
Main Features
- Metering-by-Outlet capability - Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
General Information
Name: APC AP8453 NetShelter Metered-by-Outlet Rack PDU, 0U, 1PH, 7.4kW 230V 32A, 21x C13 and 3x C19 Outlets
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP8453 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP8453 Product Line NetShelter Product Name Metered-by-Outlet Rack PDU Product Series Metered Product Type PDU Sector Data Comm & Networking
Output Voltage 230V AC
Network (RJ-45) Yes
Color Black Depth 2" Height 72" Mounting Orientation Vertical Rack Height 0U Weight 18.10lb Width 2.2"
Input Current 32A
Mount Type Rack Mount Protection Type Overcurrent Protection, Overload Protection
Limited Warranty 2-Year
Environmental Certification Green Premium, REACH, RoHS Environmentally Friendly Yes Package Contents - Metered-by-Outlet Rack PDU
- CAN port terminator
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
