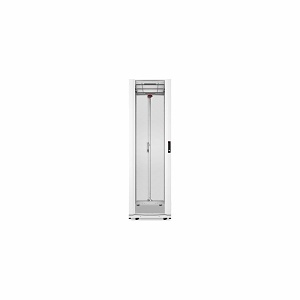

APC AR3340W Netshelter Sx 42U 750mm Wide 1200mm Deep Network Rack Cabinet

AR3340W | 2G-AR3340W

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.

Main Features

Integrated high density cable management-Decrease installation time while supporting the cabling needs of large networking switches
Cable protection and pass-through-Smooth plastic fingers provide proper bend radius
Improved cable access-Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof
High density cable management-The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure
Optimized enclosure design for side-to-side airflow-Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches

General Information

Name: APC AR3340W Netshelter Sx 42U 750mm Wide 1200mm Deep Network Rack Cabinet

Category: APC by Schneider Electric, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames

UPC Code:

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number 2G-AR3340W Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AR3340W Product Line NetShelter SX Product Model AR3340W Product Name NetShelter SX 42U 750mm Wide x 1200mm Deep Networking Enclosure with Sides White Product Type Rack Cabinet

: Application/Usage Airflow System, Networking

: TAA Compliant Yes

: Color White Depth 47.24" Height 78.39" Maximum Weight Capacity 3006.31 lb Rack Depth 41.26" Rack Height 42U Rack Width 19" Weight 335.70lb Width 29.53"

: Limited Warranty 5-Year

: Compatibility
Side-to-Side Airflow
Environmental Certification REACH Environmentally Friendly Yes Package Contents Baying Hardware, Key(s), Keyed-alike doors and side panels, Leveling Feet, Mounting hardware, Pre-installed casters, Side Panels, Vertical cable managers
