APC AR8206ABLK Roof Fan Tray 120V 50/60HZ for NetShelter WX Enclosures

Brand: APC by Schneider Electric
ADI #:2G-AR8206ABL Model #: AR8206ABLK  Name: APC AR8206ABLK Roof Fan Tray 120V 50/60HZ for NetShelter WX Enclosures
  • Fan guards - A safety measure that provides protection from the fan opening by covering the inlet.
  • Occupies 1U of rack space - Conserve valuable rack space in the data center.

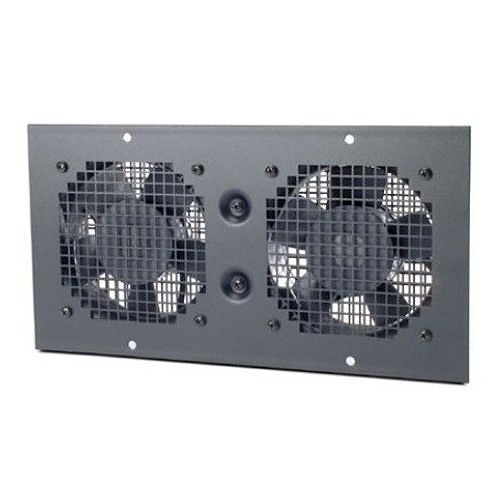

APC Roof Fan Tray for NetShelter WX Enclosures

Product Overview

A fan tray can be installed in the roof, base, or both for increased ventilation within the NetShelter WX Wall-Mount enclosure. Each tray takes up 1U of equipment mounting space. The unit ships with two fans providing a total of 220 cfm airflow.

General Information

Name : APC AR8206ABLK Roof Fan Tray 120V 50/60HZ for NetShelter WX Enclosures , APC by Schneider Electric
Category : Rack Accessories
UPC Code : 731304225201
Country of Origin : . Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 2G-AR8206ABL
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : AR8206ABLK
Product Model : AR8206ABLK
Product Name : Roof Fan Tray for NetShelter WX Enclosures
Product Type : Fan Tray
Weight (Approximate) (g) : 1820

Technical Information

Maximum Air Flow : 220 CFM
Maximum Air Flow (mL/min) : 6229706.252
Number of Fans : 2

Physical Characteristics

Color : Black
Depth : 6.9"
Depth (mm) : 175.26
Height : 2.1"
Height (mm) : 53.34
Weight (Approximate) : 4.01 lb
Width : 12.5"
Width (mm) : 317.5

Warranty

Limited Warranty : 2 Year

Miscellaneous

Compatibility : <p>APC NetShelter WX Enclosures</p>
Country of Origin : United States
Environmentally Friendly : Yes
Package Contents : <li>Roof Fan Tray for NetShelter WX Enclosures </li><li>(1) IEC to NEMA 5-15P power cord</li><li>(2) Fans</li><li>Installation guide</li>
