APC by Schneider Electric

APC AR8675 Performance, Vertical Cable Manager for and Post Racks, Double-Sided with Doors, 2134mm x 304mm x 660mm D, Black

AR8675

2G-AR8675

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All APC by Schneider Electric

APC AR8675 Performance, Vertical Cable Manager for and Post Racks, Double-Sided with Doors, 2134mm x 304mm x 660mm D, Black

AR8675 | 2G-AR8675

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

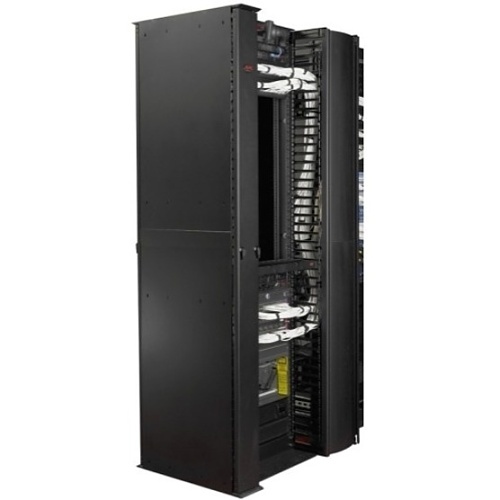

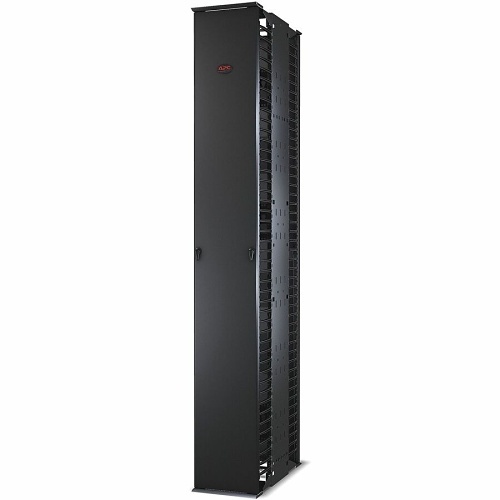

This 12" wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a double-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.

Main Features

Cable protection-Smooth plastic fingers provide proper bend radius
High capacity cable finger design-Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel
Toollessly mount vertical Rack PDUs-Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside
Slam-to-latch full length door-Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right

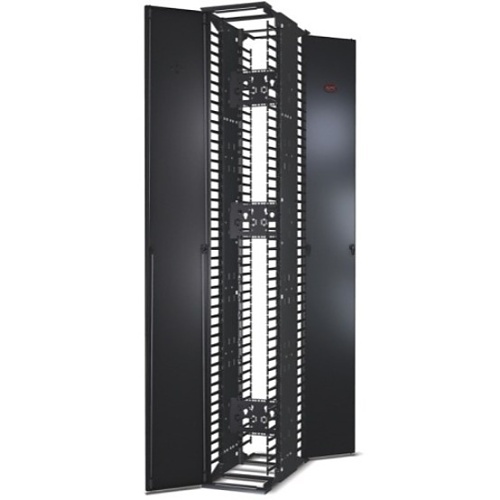

Mid-span bracket for 19" rackmount accessories and cable management-Double-sided vertical cable managers include three midspan brackets pre-installed that provide structural rigidity, 19" rackmount accessory mounting locations, and cable management tie-off using hook-and-loop cable managers (AR8621) or fiber spools (AR8444) Remove and re-arrange midspan brackets to divide the interior space of the cable manager and provide a deeper/shallower channel in 40-60, 50-50, or 60-40 splits
Vertical cable managers ship fully assembled-Vertical cable managers ship fully assembled reducing the amount of time required to install equipment
Grounding connection-Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager

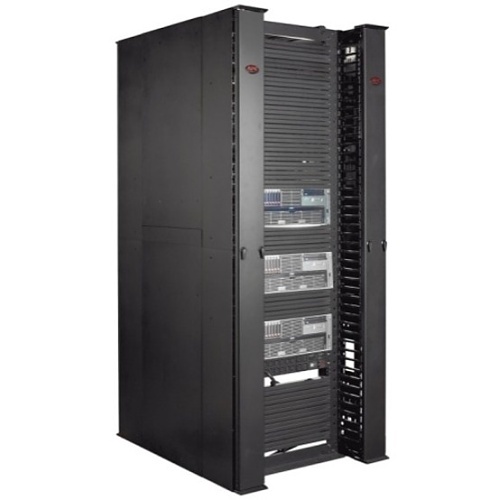

Similar look-and-feel to NetShelterT enclosures-Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures
Horizontal cable routing front-to-back-Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK

General Information

Name: APC AR8675 Performance, Vertical Cable Manager for and Post Racks, Double-Sided with Doors, 2134mm x 304mm x 660mm D, Black

Category: APC by Schneider Electric, Data Comm & Networking, Racks & Enclosures, Cable Managers

UPC Code: 731304291619

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number 2G-AR8675 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AR8675 Package Length 25.980000000 Product Name Vertical Cable Manager Product Type Cable Organizer

: Material Plastic

: Color Black Depth 25.98" Height 84.02" Weight 80.03lb Width 11.97"

: Limited Warranty 2-Year

: Compatibility APC NetShelter EnclosureAPC Open Frame Rack:2 Post4 Post Environmental Certification UL Listed Environmentally Friendly Yes Package Contents 3 x Midspan brackets, Doors, Installation guide, Mounting hardware

Documents and Resources

Download All Documents

Product Data Sheet

Manufacturer Brochure

Certification / Declaration

Additional Resources
