APC E3SFBTH2 Easy UPS 3S High Capacity Battery String, 208V

Brand: APC by Schneider Electric
ADI #:2G-E3SFBTH2 Model #: E3SFBTH2  Name: APC E3SFBTH2 Easy UPS 3S High Capacity Battery String, 208V
  • It can be chained with multiple battery packs for extended run operation
  • Valve-regulated battery characteristics provide optimal charging results with added usability
  • Once installed, it requires low maintenance

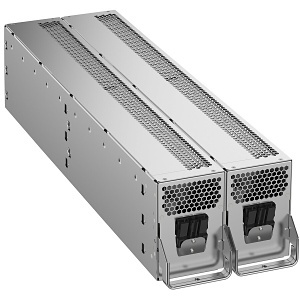

Image of 2G-E3SFBTH2

Product Overview

High capacity battery string for use with Easy UPS 3S 208V with internal battery slots and Easy UPS 3S 208V Modular Battery Cabinet (E3SXR7). Each battery string consists of two battery modules.

General Information

Name : APC E3SFBTH2 Easy UPS 3S High Capacity Battery String, 208V , APC by Schneider Electric
Category : UPS
UPC Code :

Specifications

General Information

ADI Part Number : 2G-E3SFBTH2
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : E3SFBTH2
Product Name : Easy UPS 3S High Capacity Battery String, 208V
Product Type : UPS Battery Pack
Weight (Approximate) (g) : 54000.172

Technical Information

Output Voltage : 208V DC

Battery Information

Battery Characteristics : Valve-regulated
Battery Chemistry : Lead Acid
Output Voltage (V DC) : 208

Physical Characteristics

Depth : 29.9"
Depth (mm) : 759.968
Height : 6.2"
Height (mm) : 156.972
Weight (Approximate) : 119.05 lb
Width : 8.4"
Width (mm) : 214.122

Warranty

Limited Warranty : 1 Year

Miscellaneous

Environmentally Friendly : Yes
