Product Overview

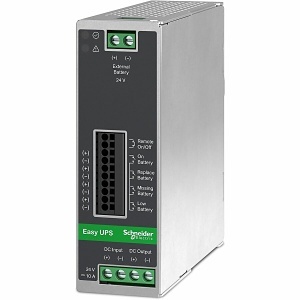

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
General Information
Name : APC BVS480XDPDR Industrial Easy UPS Control Module, 24V DC, DIN Rail, 20A , APC by Schneider Electric
Category : UPS
UPC Code :
Specifications
General Information
ADI Part Number : 2G-S480XDPDR
Brand Name : APC by Schneider Electric
Manufacturer : Schneider Electric SA
Manufacturer Part Number : BVS480XDPDR
Packaged Quantity : 1
Product Line : Easy UPS
Product Model : BVS480XDPDR
Product Name : Easy UPS BVS480XDPDR 480W DIN Rail UPS
Product Type : DC UPS
Weight (Approximate) (g) : 498.952
Technical Information
Output Voltage : 24V DC
Receptacle Type : DC Power
Battery Information
Battery Characteristics : External Battery System
Battery Chemistry : Lead Acid
DC System Voltage : 24 V DC
Typical Battery Recharge Time : 12 hrs
Typical Battery Recharge Time (Second) : 43200
Environmental Conditions
Maximum Operating Elevation : 9842.52 ft
Maximum Operating Elevation (mm) : 3000000
Maximum Storage Elevation : 9842.52 ft
Maximum Storage Elevation (mm) : 3000000
Sound Emission : 40 dB
Sound Emission (dB) : 40
Physical Characteristics
Depth : 4.7"
Depth (mm) : 119.126
Form Factor : DIN Rail
Height : 5.1"
Height (mm) : 129.032
Weight (Approximate) : 1.10 lb
Width : 1.6"
Width (mm) : 39.878
Power Description
Input Voltage : 24V DC
Input Voltage Range : 21.6 V DC - 28.8 V DC
Plug/Connector Type : Terminal Block
Product Information
Load Capacity (W) : 480.000
Warranty
Limited Warranty : 2 year
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul><li> Easy UPS BVS480XDPDR 480W DIN Rail UPS</li><li> User Manual</li></ul>
