APC SURTD2200XLIM Smart-UPS RT 2200VA 230V, Marine, High Availability

SURTD2200XLIM | 2G-SURTD2200

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

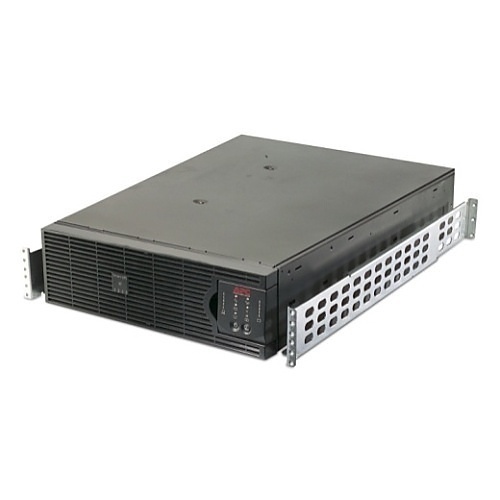

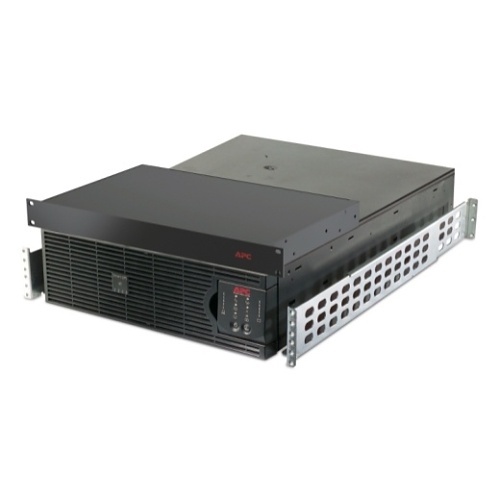

The APC SURTD2200XLIM Smart-UPS RT 2200VA 230V is a high availability uninterruptible power supply designed for marine and harsh electrical environments, provided by APC by Schneider Electric. It features double conversion on-line topology to maintain consistent high power quality and a wide input voltage range to prolong battery life. The UPS includes intelligent battery charging with a microprocessor-controlled 3-stage charging system that ensures fast recharge without reducing battery life. Additional capabilities include remote UPS management, predictive failure notification, LED indicators for unit status, overload protection, and a compact footprint for efficient space use.

Main Features

Predictive failure notification-Provides early-warning fault analysis ensuring proactive component replacement
Wide input voltage range-Designed for harsh electrical environments to save battery life
Double conversion on-line topology-Guarantees a consistently high level of power quality Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process The battery is only used as a back-up source
Fast battery charging capability-Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection
Sine wave output-Eliminates humming and heat generated when powering tube lights and fans
Intelligent Battery Charging-Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life
LED Indicators-Provide easy-to-read status of the unit and utility power conditions
Overload protection-Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload
Remote UPS management-Enable management of your UPS by connecting it directly to the network
Excellent footprint-Small UPS footprint provides maximum usage of valuable electrical room floorspace

General Information

Name: APC SURTD2200XLIM Smart-UPS RT 2200VA 230V, Marine, High Availability

Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS

UPC Code: 731304286929

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number 2G-SURTD2200 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SURTD2200XLIM Product Line Smart-UPS Product Name Smart-UPS 2200VA Rack-mountable UPS Product Type Dual Conversion Online UPS

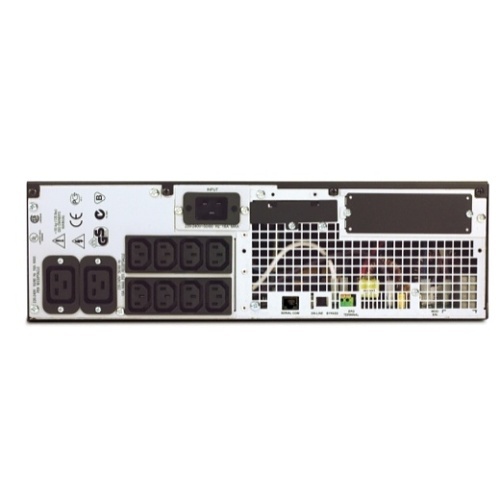

: Energy Saving Yes Hot Swappable Yes Input Receptacle Type BS1363A British, IEC 60320 C20, Schuko CEE 7/EU1-16P Number of Batteries 1 Output Receptacle Type 2 IEC 60320 C19, 2 IEC Jumpers, 8 IEC 60320 C13 Output Voltage 230V

: Battery Characteristics Maintenance-free, Sealed Battery Chemistry VRLA Battery Recharge Time 2.5-Hour Maximum Storage Relative Humidity 0.95 Replaceable Battery Yes

: Network (RJ-45) Yes Serial Port Yes

: Color Black Depth 25.98" Form Factor Rack Mount Height 17.01" Rack Height 3U Weight 120.26lb Width 5.12"

: Input Voltage 230V Output Power 2200VA Surge Energy Rating 555J Waveform Type Sine Wave

: Mount Type Rack Mount

: Limited Warranty 2-Year

: Environmental Certification California Proposition 65, CE, DNV, KCC, WEEE Environmentally Friendly Yes Package Contents CD with Software, Documentation CD, Installation Guide, Rack mounting Hardware, Smart UPS signalling RS-232 cable, User manual

Documents and Resources

Download All Documents

Product Data Sheet

User Manual
