APC SRTL5KRM2UT Smart-UPS Ultra On-Line, 5000VA, Lithium-ion, Rack / Tower 2U, 208V, 2 x L6-20R + 2 x L6-30R NEMA Outlets, Network Card, Extended Runtime, with Rail Kit
SRTL5KRM2UT
|2G-TL5KRM2UT
Shop All APC by Schneider Electric
APC SRTL5KRM2UT Smart-UPS Ultra On-Line, 5000VA, Lithium-ion, Rack / Tower 2U, 208V, 2 x L6-20R + 2 x L6-30R NEMA Outlets, Network Card, Extended Runtime, with Rail Kit
SRTL5KRM2UT | 2G-TL5KRM2UT
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

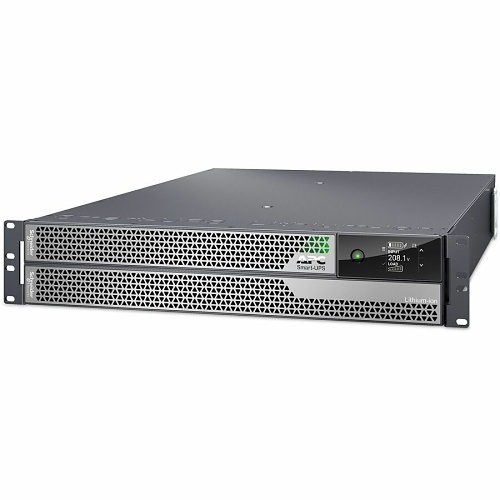

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Specifications
ADI Part Number 2G-TL5KRM2UT Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SRTL5KRM2UT Packaged Quantity 4 Product Name Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V Product Type Double Conversion Online UPS

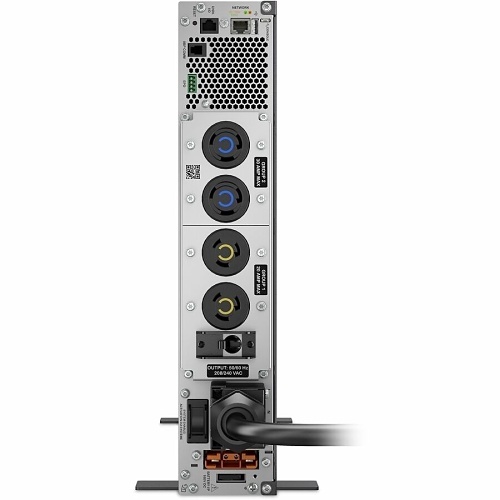

Input Receptacle Type NEMA L6-30P Output Receptacle Type 2 NEMA L6-20R, 2 NEMA L6-30R Output Voltage 208V Receptacle Detail 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle Type NEMA L6-20R, NEMA L6-30R
Battery Chemistry Li-Ion Battery Life 10 Year Battery Recharge Time 1.5-Hour DC System Voltage 180 Replaceable Battery Yes
Energy Star Yes
Status Indicators Yes
Maximum Operating Elevation 10000' Maximum Operating Temperature 104°F (40°C) Thermal Dissipation 306.85W
EPO Port Yes

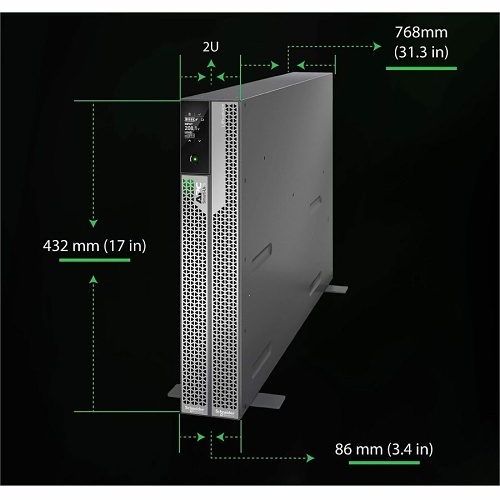

Color Gray Depth 27.60" Form Factor Rack, Tower Height 3.39" Package Type Pack Rack Height 2U Weight 64.37lb Width 17.01"
Input Frequency 70Hz Input Voltage 208V Output Frequency 60Hz Output Power 4900VA Plug/Connector Type NEMA L6-30P Surge Energy Rating 1260J Waveform Type Sine Wave
Additional Warranty Information 5 years Limited Warranty 5-Year
Country of Origin PH Environmental Certification ENERGY STAR V2.0 (USA), WEEE Environmentally Friendly Yes Package Contents CD (Software and documentation), Network Cable, Rack Mounting brackets
