Image of 40-FB4233
Shop all Hubbell Premise Wiring

Hubbell FB4233 Rectangle Floor Box Cast Iron Deep 2-G

FB4233|40-FB4233
Shop all Hubbell Premise Wiring

Hubbell FB4233 Rectangle Floor Box Cast Iron Deep 2-G

FB4233|40-FB4233
Key Features
  • 3.50" Minimum depth of pour
  • (6) 1" Threaded hubs, ships with (4) 1" to 3/4" Threaded reducers
  • 1.25" Prepour and 0.875" post pour adjustment
Key Features
  • 3.50" Minimum depth of pour
  • (6) 1" Threaded hubs, ships with (4) 1" to 3/4" Threaded reducers
  • 1.25" Prepour and 0.875" post pour adjustment

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 3.50" Minimum depth of pour
  • (6) 1" Threaded hubs, ships with (4) 1" to 3/4" Threaded reducers
  • 1.25" Prepour and 0.875" post pour adjustment
Hubbell Premise Wiring

Hubbell FB4233 Rectangle Floor Box Cast Iron Deep 2-G

FB4233 | 40-FB4233

Please sign in to view pricing and availability and to add to cart.

Accessories

Wall Plates
Image of 0E-FP1WH
ADI # 0E-FP1WH
MODEL # 0E-FP1WH
ADI PRO
ADI PRO 0E-FP1WH 1-Port Single Gang Faceplate, 2-Pack, White
0E-FP1WH|0E-FP1WH
Sign In for Dealer Pricing
Wall Plates
Image of 0E-FP2WH
ADI # 0E-FP2WH
MODEL # 0E-FP2WH
ADI PRO
ADI PRO 0E-FP2WH 2-Port Single Gang Faceplate, 2-Pack, White
0E-FP2WH|0E-FP2WH
Sign In for Dealer Pricing
Wall Plates
W Box 3 Port Single Gang Faceplate
ADI # 0E-FP3WH
MODEL # 0E-FP3WH
ADI PRO
ADI PRO 0E-FP3WH 3-Port Single Gang Faceplate, 2-Pack, White
0E-FP3WH|0E-FP3WH
Sign In for Dealer Pricing
Wall Plates
W Box 0E-FP4WH 4-Port Single Gang Faceplate, White, 2-Pack
ADI # 0E-FP4WH
MODEL # 0E-FP4WH
ADI PRO
ADI PRO 0E-FP4WH 4-Port Single Gang Faceplate, 2-Pack, White
0E-FP4WH|0E-FP4WH
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

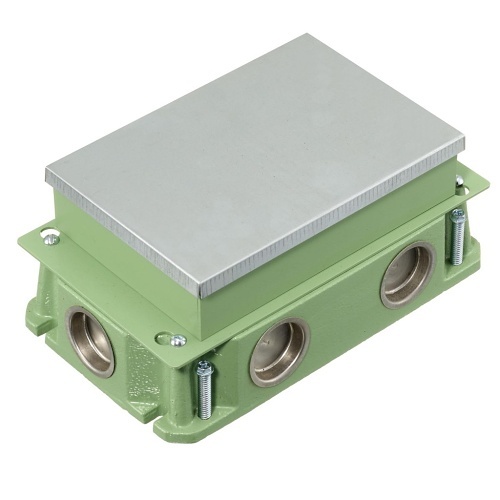

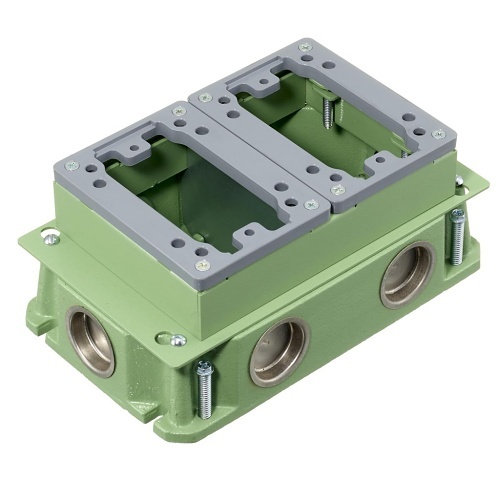

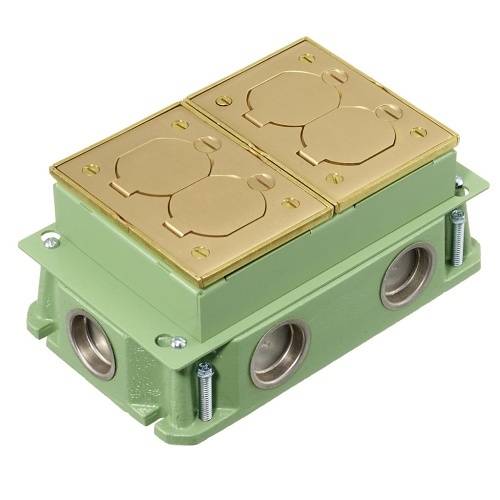

Rectangular flush deep cast iron base floorbox with a stamped steel adjustable top for use with rectangular covers and flanges, green corrosion resistant painted, for use in concrete floors. This 2-gang box has 3.50" Minimum depth of pour, includes installation concrete cover, disposable PVC spacers, and external 1.25" Prepour leveling screws. Box has .875" adjustable top, (6) 1" Threaded hubs, ships with (4) 1" to 3/4" Threaded reducers, (1) removable metallic low voltage divider and (2) 6" long #12 AWG Ground wires.

Main Features

  • 3.50" Minimum depth of pour
  • (6) 1" Threaded hubs, ships with (4) 1" to 3/4" Threaded reducers
  • 1.25" Prepour and 0.875" post pour adjustment
  • Green painted corrosion-resistant cast iron base and stamped steel top
  • For use in slab on grade, 2nd floor and above concrete floors
  • Multi-service, includes (1) removable metallic low voltage divider
  • Each gang includes (1) 6" solid #12 AWG conductor Grounding pigtail

General Information

Name: Hubbell FB4233 Rectangle Floor Box Cast Iron Deep 2-G
Category: Hubbell Premise Wiring, Data Comm & Networking, Electrical Back Boxes & Brackets, Electrical Back Boxes
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
Manufacturer Brochure
