Hubbell HRCB12WHT Recessed Ceiling Box, 1' x 2', White
HRCB12WHT
|40-HRCB12WHT
Shop all Hubbell Premise Wiring
Hubbell HRCB12WHT Recessed Ceiling Box, 1' x 2', White
HRCB12WHT | 40-HRCB12WHT
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

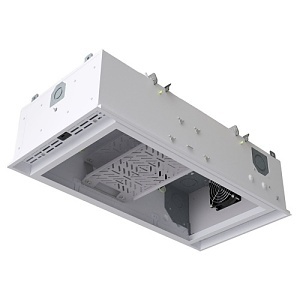

White 1'x 2' ceiling box enclosure provides an external single15A, 125V receptacle on the ceiling surface, two internal leaded 15A 125V duplex receptacles, and two 1/2" andamp; 3/4" combination knock-outs for power feed. Two shelves to mount two half-rack devices for AV equipment and four 1" andamp; 1-1/4" combination knock-outs for AV wiring. There are four tabs on the back of the box with 0.28" mounting holes. Optional HRCB12FAN cooling fan and mounting kits are available. Hinged door accepts drop ceiling tile for blended finish. The ceiling box works best with standard Tee shaped grid, typically 15/16" or 9/16" wide.
Main Features
- All Steel Construction
- White 1' x 2' Ceiling Enclosure
- External and Internal Power
- 20 Pound Rated AV equipment
- Hinged door accepts drop ceiling tile for blended finish.
- Plenum Rated, boxes conform to UL 2043 for installation in air-handling spaces
General Information
Name: Hubbell HRCB12WHT Recessed Ceiling Box, 1' x 2', White
Category: Hubbell Premise Wiring, Data Comm & Networking, Electrical Back Boxes & Brackets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 40-HRCB12WHT Brand Name Hubbell Premise Wiring Manufacturer Part Number HRCB12WHT
Material Painted Steel
Color White Height 6" Width 11.69"
Length 23.69"
