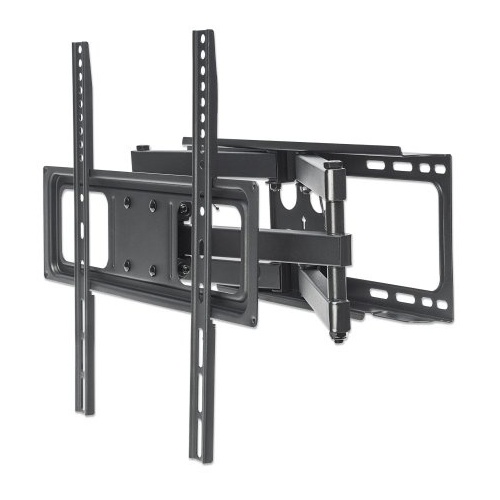

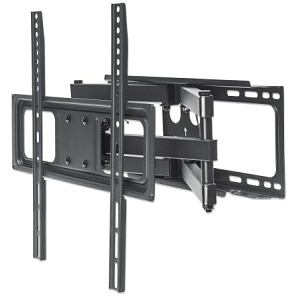

Manhattan 461344 Full-Motion TV Wall Mount with Post-Leveling Adjustment, 32-55", 40 kg (88 lbs.) Black
461344|42-461344
Manhattan 461344 Full-Motion TV Wall Mount with Post-Leveling Adjustment, 32-55", 40 kg (88 lbs.) Black
461344|42-461344
Key Features
What's Included
- Supports one flat or curved 32" to 55" TV up to 40 kg (88 lbs.)
- Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
Key Features
What's Included
- Supports one flat or curved 32" to 55" TV up to 40 kg (88 lbs.)
- Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Supports one flat or curved 32" to 55" TV up to 40 kg (88 lbs.)
- Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
Manhattan
Manhattan 461344 Full-Motion TV Wall Mount with Post-Leveling Adjustment, 32-55", 40 kg (88 lbs.) Black
461344 | 42-461344
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Articulating TV Wall Bracket fully adjustable mounting bracket to fit almost any space . This strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15 degrees tilt and +/-60 degrees swivel adjustment for optimized views. It fits flat and curved LCD, OLED or plasma TVs up to 55" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 400x400. You re all set for a confident above-the-floor installation with +/-3 degrees post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Main Features
- Supports one flat or curved 32" to 55" TV up to 40 kg (88 lbs.)
- Optimized views with +5 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 53 to 464 mm (2.1 to 18.3 in.) from wall
- Heavy-duty steel construction with powder coating
- Built-in cable management to minimize clutter
- Easy installation ideal for home, office and commercial applications
- Meets VESA standards 75x75 to 400x400 e.g. 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x400
General Information
Name: Manhattan 461344 Full-Motion TV Wall Mount with Post-Leveling Adjustment, 32-55", 40 kg (88 lbs.) Black
Category: Manhattan, Residential AV, Residential Projectors & Display Accessories, Display Mounts & Accessories
UPC Code: 766623461344
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 42-461344 Brand Name Manhattan Manufacturer IC INTRACOM Manufacturer Part Number 461344 Product Model 461344 Product Name Universal Basic LCD Full-Motion Wall Mount Product Type Wall Mount Weight 7.34lb
-
Device Supported TV Maximum Load Capacity 88 lb
-
Color Black Height 16.54" Material Steel VESA Mount Compatible Yes VESA Mount Standard 200 x 200, 300 x 300, 400 x 200, 400 x 400 Width 18.27"
-
Length 17.91" Maximum Screen Size Supported 55" Minimum Screen Size Supported 32" Number of Displays Supported 1
-
Limited Warranty Lifetime
-
Compatibility LCD TV Features Holds TV 67 to 355 mm (2.6 to 14 in.) from wall, Includes attachable bubble level, Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment, steel construction with powder coating, Supports one flat or curved 32" to 70" TV up to 40 kg (88 lb.) Package Contents Universal Basic LCD Full-Motion Wall Mount Installation Hardware with Instructions
