Product Overview

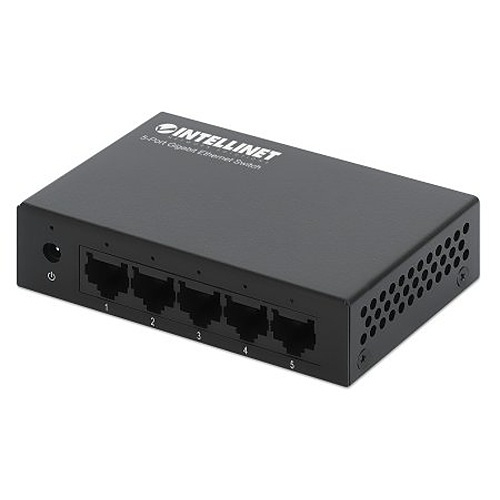

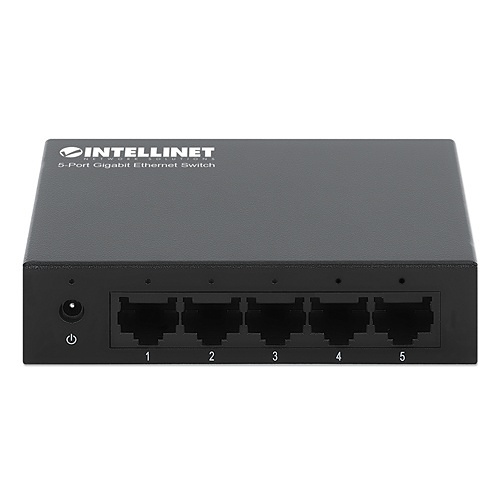

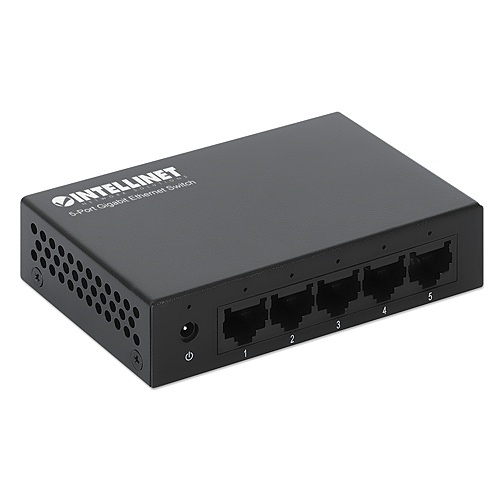

Easy to install, with auto-learning capabilities. The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. High-Speed Performance. This desktop switch includes five Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. Auto Features. This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the five ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. Reliable Operation. The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, flow control further ensures that your connections remain active even under extremely busy conditions.
Main Features
- 10/100/1000 Auto MDI-X ports automatically detect optimal network speeds
- High performance, half and full duplex, with zero packet loss
- Full flow control support provides optimum performance
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- Auto-learning of network configuration
- Supports jumbo frames up to 9 kBytes
- Store and forward switching architecture
- Fanless design ideal for silent operation
- Rugged metal housing for maximum durability
General Information
Name: Intellinet 530378 5-Port Gigabit Ethernet Switch Metal, Desktop Size, IEEE 802.3az (Energy Efficient Ethernet), Metal Housing
Category: Intellinet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 766623530378
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 42-530378 Brand Name Intellinet Manufacturer IC INTRACOM Manufacturer Part Number 530378 Packaged Quantity 1 Product Model 530378 Product Name 5-Port Gigabit Ethernet Switch Product Type Ethernet Switch
Media Type Supported Twisted Pair Power Consumption 1.60W
TAA Compliant Yes
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2
PoE (RJ-45) Port No Power Source AC Adapter
Length 2.8" Mount Type Desktop Mount
Limited Warranty 3-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - 5-Port Gigabit Ethernet Switch
- External Power Adapter
- User Manual
