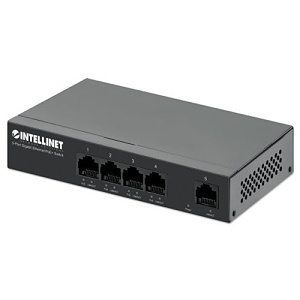

Intellinet 561792 5-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Compliant, Wall-mount Option
561792
|42-561792
Shop All Intellinet
Intellinet 561792 5-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Compliant, Wall-mount Option
561792 | 42-561792
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Affordable 5-Port Gigabit Power over Ethernet Switch. The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1000 Mbps. Power over Ethernet IEEE 802.3at. The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port.* IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. * Total PoE budget for this switch is 40 watts; maximum per-port power usage cannot exceed 30 watts.
Specifications
ADI Part Number 42-561792 Brand Name Intellinet Manufacturer Part Number 561792
Material Metal
Ethernet Technology Ethernet, Fast Ethernet, Gigabit Ethernet Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Height 1.1" Width 3.03"
Input Voltage 100-240V AC PoE Budget 40W Power Source PoE
Length 5.51"
Limited Warranty 3-Year
Environmental Certification CE, FCC, RoHS Environmentally Friendly Yes Features 10 Gbps switch fabric / switching capacity, 10/100/1000 auto-sensing ports automatically detect optimal network speeds, Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data, Compatible with IEEE 802.3at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more, PoE power budget of 40W, Power output up to 30W per port, Provides up to four PoE network devices with power and data, Saves time and money by delivering data and power via existing network cables, Short-circuit, overload and high-voltage protection
