Product Overview
Desktop 5-Port PoE Switch with Gigabit Uplinks - Supports 10/100/1000 Mbps, Power over Ethernet 802.3at

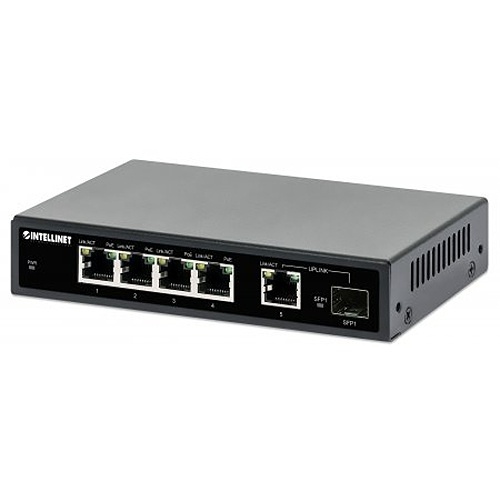

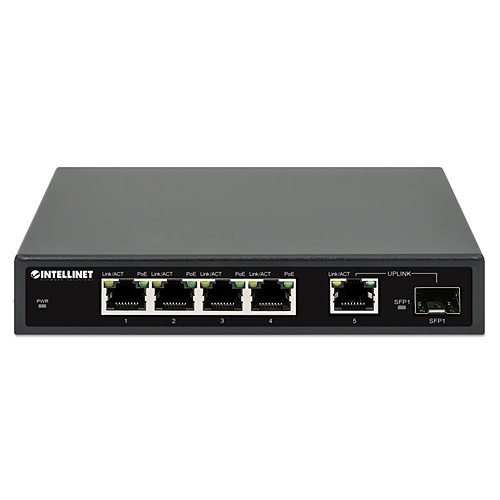

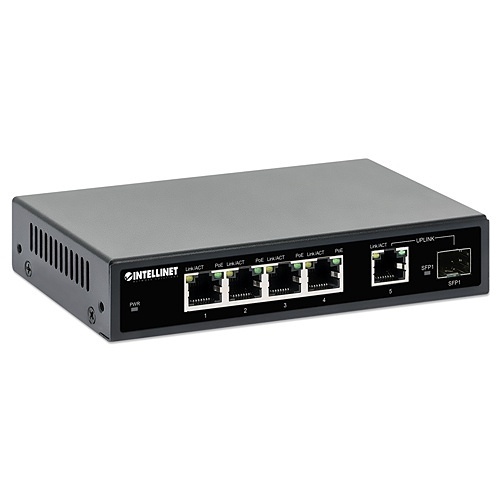

The 5-Port Gigabit Ethernet PoE+ Switch with SFP Port from Intellinet Network Solutions passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
High-power PoE+ with output up to 30 watts
This switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and highvoltage protection function, your equipment is well-protected.
Gigabit Uplinks
The switch is equipped with one Gigabit RJ45 and one SFP transceiver module slot. These Gigabit uplink ports are ideal for connecting the switch to the network's backbone, a server or, perhaps, your video recording solution (NVR).
Wall-mount option
For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Features:
- Provides up to four PoE network devices with power and data
- Four 10/100/1000 Mbps IEEE 802.3at/af-compliant RJ45 PoE ports, one gigabit RJ45 port and one gigabit SFP port
- PoE power budget of 91 watts
- Power output up to 30 watts per port
- Saves installation costs by delivering data and power over existing network cables
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and highvoltage protection
- 12 Gbps switch fabric
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports 2k MAC address entries
- Compact desktop format with rugged metal housing

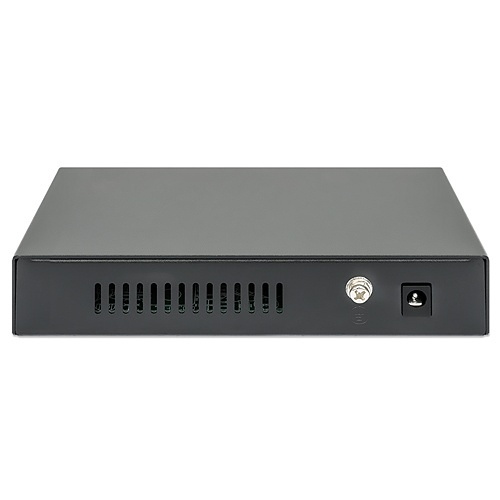

- Grounding point to protect equipment from external electrical surges
- Mounting holes for wall mounting
- Rubber feet for non-slip desktop use
- Fanless design ideal for silent operation
- Three-year warranty
General Information
Name : Intellinet 561822 5-Port Gigabit Ethernet PoE+ Switch with SFP Port, PoE Power Budget of 91 W, Desktop Format, Wall-mount Option , Intellinet
Category : Network Switches
UPC Code : 766623561822
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 42-561822
Brand Name : Intellinet
Manufacturer : IC INTRACOM
Manufacturer Part Number : 561822
Product Model : 561822
Product Name : 5-Port Gigabit Ethernet PoE+ Switch with SFP Port
Product Type : Ethernet Switch
Weight (Approximate) (g) : 800
Technical Information
Media Type Supported : Twisted Pair
Power Consumption : 96W
Interfaces/Ports
Network (RJ-45) : Yes
Port/Expansion Slot Details : 1 x Gigabit Ethernet Expansion Slot, 1 x Gigabit Ethernet Port, 4 x Gigabit Ethernet PoE
Total Number of Network Ports : 5
Uplink Port : Yes
Media & Performance
Network Technology : 10/100/1000Base-T, 100Base-TX
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Physical Characteristics
Form Factor : Desktop Mount, Wall Mount
Height : 1.1"
Height (mm) : 29
Product Material : Metal
Weight (Approximate) : 1.76 lb
Width : 6"
Width (mm) : 153
Power Description
Frequency : 50 Hz|60 Hz
Frequency (Hz) : 50, 60
Input Voltage : 120V AC, 230V AC
Input Voltage (V AC) : 120, 230
PoE (RJ-45) Port : Yes
PoE Budget : 91W
PoE Budget (W) : 91
Power Consumption (W) : 96.000
Power Source : AC, Power Supply
Product Information
Length : 3.4"
Length (mm) : 86.000
Warranty
Limited Warranty : 3 Year
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Fanless
Package Contents : <ul> <li>5-Port Gigabit Ethernet PoE+ Switch With SFP Port</li> <li>Power Adapter</li> <li>Power Cable</li> <li>4 x Rubber Feet</li> <li>Instructions</li> </ul>
