Intellinet 791083 CAT5e RJ45 Modular UTP Plugs Fastcrimp for Solid and Stranded Wire, 3-Prong, 100-Piece
791083
|42-791083
Shop all Intellinet

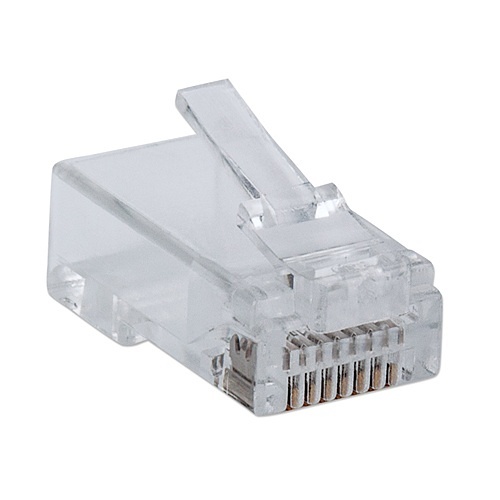

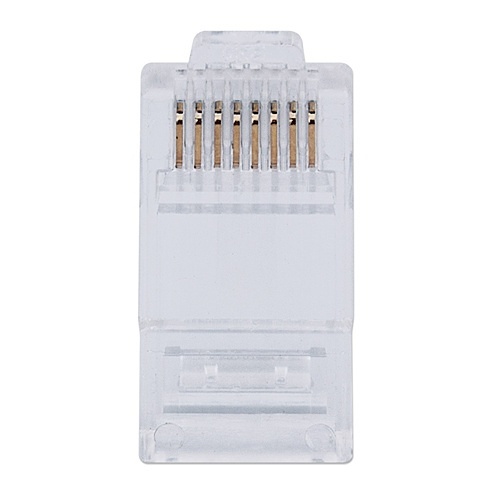

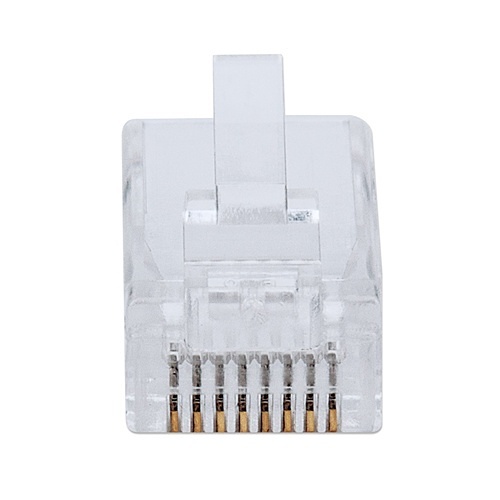

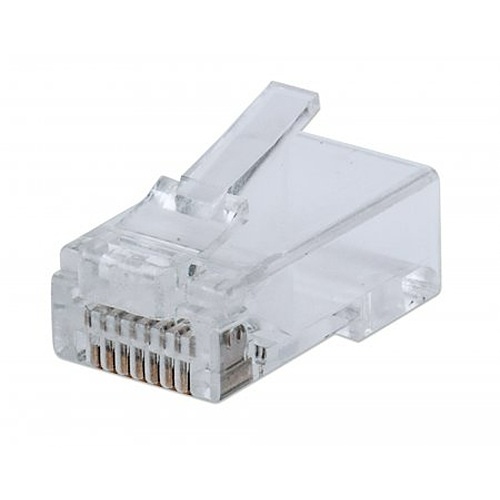

Intellinet 791083 CAT5e RJ45 Modular UTP Plugs Fastcrimp for Solid and Stranded Wire, 3-Prong, 100-Piece
791083 | 42-791083
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
An intuitive modular plug design for faster and easier terminations. FastCrimp RJ45 Modular Plugs from Intellinet Network Solutions help installers terminate RJ45 cables quickly and easily. Getting clean connections with the jacket at the crimp point sometimes requires an extra trimming step to get the wire lengths just right. With the intuitive design of the FastCrimp Modular Plugs, you run the wires all the way through the plug and out the front before you crimp and cut them with the Intellinet FastCrimp Modular Plug Crimping Tool (#790352). There’s no more wondering if the wires got crossed in the connector or if they are seated completely — you can easily check them for perfect positioning and additional peace of mind.
Main Features
- Makes terminations fast and easy by feeding the wires through the plug and out the front
- 3-µ gold-plated contacts
- Supports 22 to 24 AWG stranded and solid wire
- For unshielded twisted pair applications
- Standard 8P8C design, compatible with all network RJ45 connections
- Cat5e performance, in compliance with ANSI/TIA/EIA 568-D standard
- For use with Intellinet FastCrimp Modular Plug Crimping Tool (#790352)
- Lifetime warranty
General Information
Name: Intellinet 791083 CAT5e RJ45 Modular UTP Plugs Fastcrimp for Solid and Stranded Wire, 3-Prong, 100-Piece
Category: Intellinet, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 766623791083
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 42-791083 Brand Name Intellinet Manufacturer IC INTRACOM Manufacturer Part Number 791083 Packaged Quantity 100 Product Model 791083 Product Name 100-Pack FastCrimp Cat.5e RJ45 Modular Plugs Product Type Network Connector
Cable Type Category 5e Contact Plating Gold
TAA Compliant No
Connector Type RJ45
Color Transparent Height 0.3" Width 0.9"
Length 0.5"
Limited Warranty Lifetime
Country of Origin CN Features 3-µ gold-plated contacts, Makes terminations fast and easy by feeding the wires through the plug and out the front, Stranded, Supports 22 to 24 AWG stranded and solid wire
