Key Features
- Independent 22" extension; The MAX2 can extend up to 22" off the wall and swivel left or right up to 40° independent of vertical position
- Motor Assisted Vertical Travel; Automatically lower and raise the TV with one finger up to 28" using a conveniently located toggle switch
- Constant Tension Design; Offers absolute stop anywhere-positioning
Key Features
- Independent 22" extension; The MAX2 can extend up to 22" off the wall and swivel left or right up to 40° independent of vertical position
- Motor Assisted Vertical Travel; Automatically lower and raise the TV with one finger up to 28" using a conveniently located toggle switch
- Constant Tension Design; Offers absolute stop anywhere-positioning
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Independent 22" extension; The MAX2 can extend up to 22" off the wall and swivel left or right up to 40° independent of vertical position
- Motor Assisted Vertical Travel; Automatically lower and raise the TV with one finger up to 28" using a conveniently located toggle switch
- Constant Tension Design; Offers absolute stop anywhere-positioning
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents

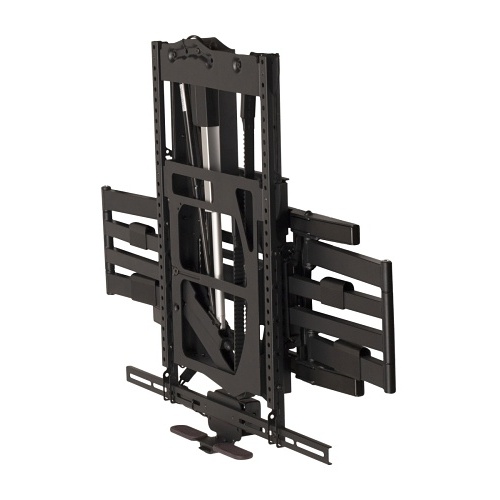

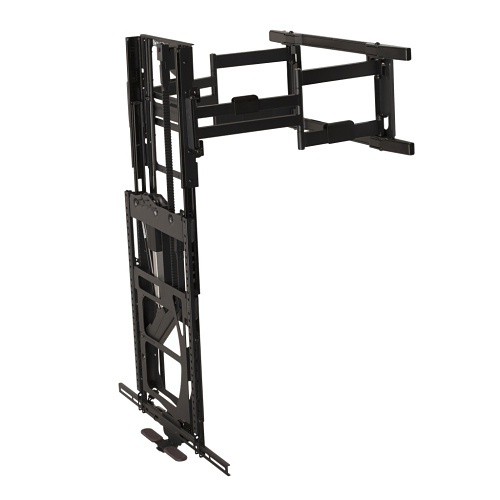

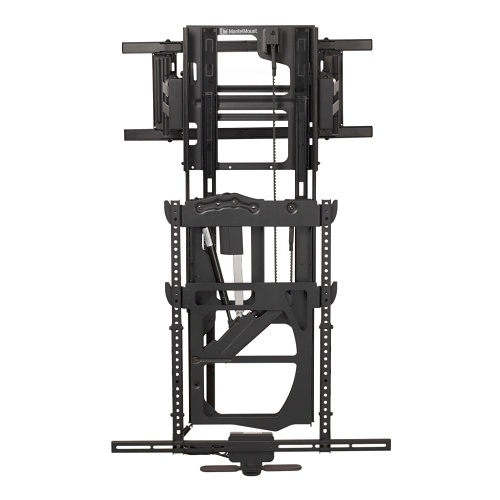

Product Overview
Offer your customers all the benefits of a traditional full-motion mount with the added capability of independent extension from the wall combined with up to 28" of motor-assisted vertical travel. The MAX2 offers our closest flush to wall distance in a non-recessed application that can position the back of the TV just 3" off the wall. MAX2 clearance requirements are also simplified when mounting a TV above obstructions such as a fireplace mantel. This innovation creates a new standard in the full-range motion mount category, ensuring your TV is always at the perfect eye level and viewing angle with just the touch of a button. Plus, with its ability to handle TV’s and soundbars up to 150 lbs., the MantelMount MAX2 offers robust support for even the largest screens.
Main Features
- Independent 22" extension; The MAX2 can extend up to 22" off the wall and swivel left or right up to 40° independent of vertical position
- Motor Assisted Vertical Travel; Automatically lower and raise the TV with one finger up to 28" using a conveniently located toggle switch
- Constant Tension Design; Offers absolute stop anywhere-positioning
- Rock-Solid Stability; The MAX2 combines 3mm commercial-grade steel with a constant tension design, holding TV’s securely in any position and eliminating the need for mechanical stops
- Slim and Sleek; Despite its robust capabilities, the MAX2 slim profile keeps TV’s as close as 3” to the wall, rivaling the sleekness of traditional articulating mounts in non-recessed applications
- Minimal Clearance; When mounting above obstructions, such as a fireplace mantel, MAX2 allows for clearances as close as 2” from bottom of the TV (or soundbar)
- Fits in Tight Spaces; MAX2’s unique abilities make it perfect for set-and-forget positioning applications in compact spaces and unique AV setups in confined areas
- Expanding into Other Vertical Markets; Ideal for education, digital signage, conference rooms, hospitality applications and more. MAX2’s unique positioning abilities and user-friendly operation, MAX2 excels beyond the traditional consumer AV market
- Integrated Features; Comes with high temperature indicators, soundbar mounting brace and cable routing clips for a clean, organized look
General Information
Name: MantelMount MAX2 Motor Assist Articulating TV Mount
Category: MantelMountPro, Pro AV, Commercial Displays, Pro Display Accessories & Mounts
UPC Code: 00860011717010
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number 4W-MAX2 Brand Name MantelMount Manufacturer Part Number MAX2 Product Model MAX2 Product Type Wall Mount
-
Device Supported TV - Sound Bar or Speakers
-
VESA Mount Standard 200 x 200, 200 x 300, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 500 x 500, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600
-
Mount Type Articulating Mount
