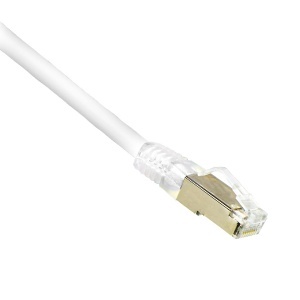

Weltron 90-C6ABS-WH-005 5' CAT6A FTP Shielded Twisted Pair Patch Cable, 5', White
90-C6ABS-WH-005
|52-WH005
Shop all Weltron
Weltron 90-C6ABS-WH-005 5' CAT6A FTP Shielded Twisted Pair Patch Cable, 5', White
90-C6ABS-WH-005 | 52-WH005
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Weltron CAT6a patch cables, our CAT6a shielded patch cables represent the forefront of copper networking cables. These cables offer the highest level of performance that copper can transfer, with the shielding actually giving these CAT6a shielded patch cables more headroom over the standar CAT6a patch cable. Our CAT6a shielded patch cables have 26AWG 4-pair bare copper conductors, with overall braided shield and individually shielded pairs to protect from electromagnetic interference (EMI) and radio frequency interference (RFI). With its additional and tighter twists, along with added insulation these CAT6a shielded patch cables offer twice the bandwidth support over CAT6 patch cables.
Main Features
- Conductor 26AWG 4 overall foiled twisted pairs
- Connector 50 µ gold plated RJ45 with nickel plated shell
- CM rated PVC jacket
- Molded strain relief provides flexibility and eliminates cable stress
- Verified to ANSI/TIA-568-C.2
- ROHS Compliant
General Information
Name: Weltron 90-C6ABS-WH-005 5' CAT6A FTP Shielded Twisted Pair Patch Cable, 5', White
Category: Weltron, Wire & Cable, Network Patch Cords, Category 6A Patch Cords
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 52-WH005 Brand Name Weltron Manufacturer Part Number 90-C6ABS-WH-005
American Wire Gauge 26AWG Boot Type Molded Cable Rating CM Cable Type Category 6a Connector Plating Gold, Nickel Contact Plating Gold Impedance 100 ohms Jacket Type CM Number of Pairs 4 Shielding Yes Solid or Stranded Stranded
Connector Type RJ45
Cable Length 5' Color White
Environmental Certification RoHS Environmentally Friendly Yes
