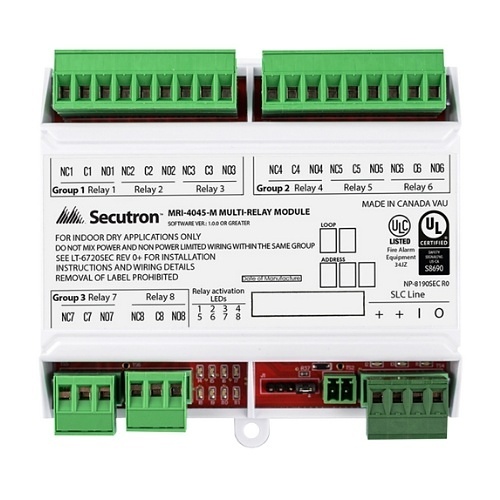

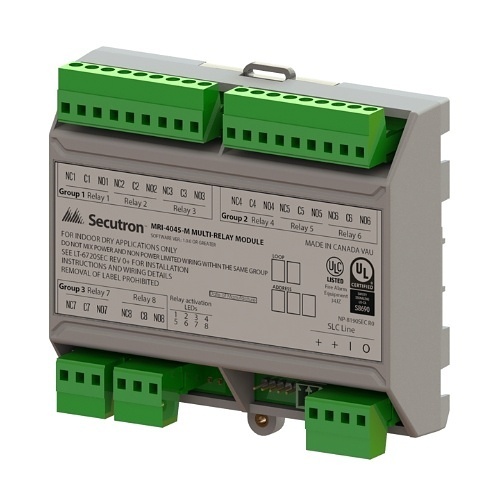

Image of 5T-MRI4045M

Secutron MRI-4045-M Multi Relay Module

MRI-4045-M|5T-MRI4045M

Secutron MRI-4045-M Multi Relay Module

MRI-4045-M|5T-MRI4045M
Key Features
  • Provides 8 form C (SPDT) contacts rated at 2A at 30VDC or 0.5 at 125 VAC
  • Each contact can be individually controlled by the FACU
  • All 8 form C contacts use only one module address through the sub-addressing technique
Key Features
  • Provides 8 form C (SPDT) contacts rated at 2A at 30VDC or 0.5 at 125 VAC
  • Each contact can be individually controlled by the FACU
  • All 8 form C contacts use only one module address through the sub-addressing technique

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Provides 8 form C (SPDT) contacts rated at 2A at 30VDC or 0.5 at 125 VAC
  • Each contact can be individually controlled by the FACU
  • All 8 form C contacts use only one module address through the sub-addressing technique
Secutron

Secutron MRI-4045-M Multi Relay Module

MRI-4045-M | 5T-MRI4045M

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The MRI-4045-M Multi Relay Module is an intelligent addressable device that provides relay outputs that can be programmed to respond to any alarm or combination of inputs. It is designed to be used with Secutron compatible Fire Alarm Control Unit. The MRI-4045-M provides eight (8) form C (SPDT) contacts. The contact position is always verified by the modules, if stuck or inoperative contacts are encountered, it will be reported as trouble by the FACU. The power-limited SLC connection is conveniently placed away from the relays terminals. The relay contacts are electrically isolated from the SLC section and are meant to control circuits not requiring supervision. Lines connected to the relays contacts are power limited if wired to a power limited source. The address of the MRI-4045-M is set by using the hand-held programmer tool MIX-4090. The module has LED indicators for each relay to signal activation (RED). A green LED shows SLC communication status and finally, two yellow LEDs indicate if a short circuit has been isolated on either side of the SLC connection. The MRI-4045-M provides a fast and quick installation as it comes with plug-in terminal blocks and it can be easily mounted on the DIN rail without using any additional tool. The MRI-4045-M can be mounted on either the MMX-BB-4002R which supports up to 2 multi-modules or on the MMX-BB-4006R which allows up to 6 multi-modules. The MRI-4045-M can also be mounted on any UL/ULC listed backbox enclosure by using the mounting bracket kit.

Main Features

  • Provides 8 form C (SPDT) contacts rated at 2A at 30VDC or 0.5 at 125 VAC
  • Each contact can be individually controlled by the FACU
  • All 8 form C contacts use only one module address through the sub-addressing technique
  • Group Activation capability for fast reaction time
  • Affordable and space efficient
  • Mounting clip for DIN rail and plug-in terminal blocks for fast and easy installation
  • The SLC and power connections are on opposite corners of the device for easy installation
  • Each relay has LED indicators to signal activation (RED)
  • Additional LEDs to show SLC communication status and if a short circuit has occurred
  • Compatible with MR-400, MR-401 and MMX-4000 Fire alarm control panels

General Information

Name: Secutron MRI-4045-M Multi Relay Module
Category: Batteries & Power Supplies, Circuit Breakers, Fuses & Relays, Relays
UPC Code: 628090283280
Country of Origin: Canada. Country of origin is subject to change.
