Product Overview

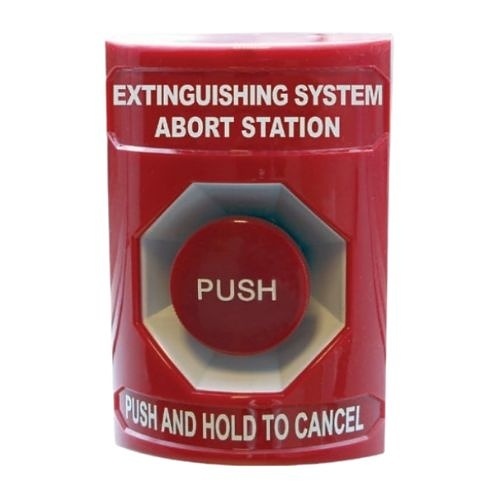

The abort station is designed for use with compatible systems. The abort station employs a momentary mushroom switch which, while held in, prevents discharge of the releasing agent. The abort station is molded of a super tough polycarbonate that is rated for -40˚F to 120˚F (-40˚C to 49˚C). The station includes one N.O. contact and one N.C. contact. The N.O. or N.C., SPST gold-plated contact blocks are rated for 3A at 600VAC or 1A at 250VDC. The abort station mounts in a standard single-gang electrical box.
Main Features
- Equipped with a momentary mushroom switch
- Unique, curved design helps protect against accidental activation
- Stainless steel backplate
- N.O. or N.C., SPST gold-plated contact blocks rated for 3A at 600VAC or 1A at 250VDC
- Station housing molded of super tough polycarbonate
- Polycarbonate rated -40˚F to 120˚F (-40˚C to 49˚C)
- Mounts in a single gang electrical box
General Information
Name: Secutron SS-2004 Mushroom Switch Abort Station
Category: Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950200406
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number 5T-SS2004 Brand Name Secutron Manufacturer Part Number SS-2004
