Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR / RS-232 & USB / KVM
Shop all Blustream

Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR RS-232 and USB KVM

IP200UHD-TX|6E-IP20UHDTX
Shop all Blustream

Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR RS-232 and USB KVM

IP200UHD-TX|6E-IP20UHDTX

Sign In for Dealer Pricing

Become an ADI Customer
Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR / RS-232 & USB / KVM
Blustream

Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR RS-232 and USB KVM

IP200UHD-TX | 6E-IP20UHDTX

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch.

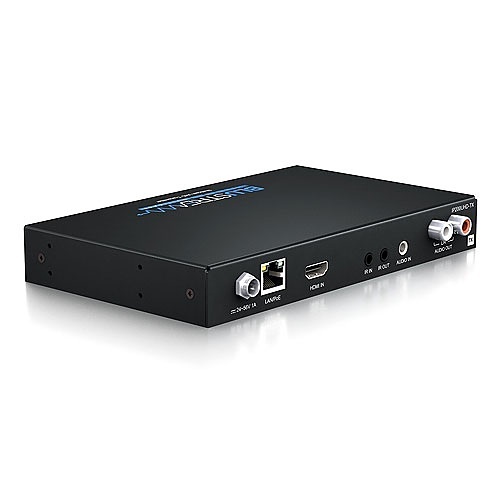

The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that uses visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture.

The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

Included in Box

  • 1 x IP200UHD-TX
  • 1 x (IRR) IR Receiver
  • 1 x (IR1) IR Transmitter
  • 1 x Serial 3-pin Phoenix Connector
  • 1 x Mounting Kit

Main Features

  • Advanced UHD video over 1Gb Network
  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP 2.2 compliant with advanced EDID management
  • Analogue L/R audio embedding
  • Analogue L/R audio breakout

General Information

Name: Blustream IP200UHD-TX IP Multicast HDMI UHD Video KVM over 1GB Network Receiver with Bi-directional IR RS-232 and USB KVM
Category: Blustream, Pro AV, Data Comm & Networking, Commercial Video Signal Distribution, KVM Switches & Extenders, Pro HDMI Switchers
UPC Code: 9340242002907
Country of Origin: China. Country of origin is subject to change.
