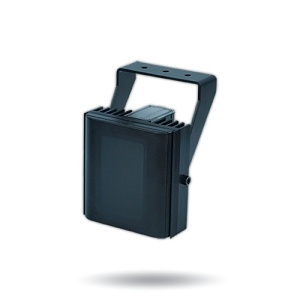

Digital Watchdog DW-ILIRIP850 NightWatch IR LED Outdoor Illuminator, 614'

DW-ILIRIP850 | 6K-ILIRIP850

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

These NightWatch DW-ILIRIP850 and DW-ILIRIP940 are IP-enabled Infrared (IR) LED outdoor illuminators. The illuminators incorporate the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with smart lighting solutions for a wide range of applications.

Main Features

Extended IR Coverage Achieve up to 614 feet (187m) of powerful infrared illumination, ensuring superior visibility in low-light and nighttime conditions for enhanced perimeter security.
Customizable Beam Angles Includes interchangeable lens packs to easily adjust beam profiles (10° to 95°), aligning illumination with your camera’s field of view for optimal coverage.
Smart Motion Activation Configure lights to activate only when motion is detected (with compatible sensors), reducing energy consumption and improving response efficiency
Seamless DW Spectrum Integration Fully compatible with DW Spectrum, enabling centralized control and real-time event response for smarter surveillance management.
Built-In Web Interface Manage and configure illumination settings remotely via a user-friendly web interface—no software installation required
High-Power Dual-Core™ LEDs Equipped with advanced surface-mount Dual-Core™ LEDs for high-efficiency lighting and reliable performance in demanding environments.
Rugged Environmental Protection IP66-rated for dust and water resistance and IK09-rated for impact protection, ensuring durability in harsh outdoor conditions
Adjustable Illumination Levels Fine-tune photocell sensitivity (20–70 lux) and illumination output (10%–100%) to match site-specific lighting needs.
Flexible Mounting Options Supports various mounting brackets (single, dual, triple, and pole mounts) for easy installation across diverse site layouts.

General Information

Name: Digital Watchdog DW-ILIRIP850 NightWatch IR LED Outdoor Illuminator, 614'

Category: Digital Watchdog, Video Surveillance, Video Accessories, Illuminators

UPC Code: 812226031283

Country of Origin: United Kingdom. Country of origin is subject to change.

Specifications

: ADI Part Number 6K-ILIRIP850 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-ILIRIP850 Product Line Sitewatch Product Model DW-ILIRIP850 Product Name NightWatch IR LED IP-enabled PoE+ illuminator Product Series NightWatch Product Type Infrared Illuminator

: Application/Usage Outdoor, Surveillance Device Supported Detectors Material Aluminum, Stainless Steel Video Formats H.264, MJPEG

: Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes

: Operating Temperature (T-T) -58-122°F

: Color Black Dimensions 4.33" x 4.48" x 3.07" Durability Impact Resistant

: Limited Warranty 2-Year

: Certifications IEC/EN 60529, IEC/EN 62262 Country of Origin GB Features Adjustable Light Intensity, Integrated Web Interface, LED Illumination, PoE, Robust, SMT LED Technology, Surface Mount, Wall Mountable Impact Protection Rating IK09 Indoor/Outdoor Outdoor
