Digital Watchdog DW-BJRR2U100T6 BlackJack Rack, 100TB, Windows 10, R6
DW-BJRR2U100T6|6K-RR2U100T6
Digital Watchdog DW-BJRR2U100T6 BlackJack Rack, 100TB, Windows 10, R6
DW-BJRR2U100T6|6K-RR2U100T6
Key Features
What's Included
- Supports all ONVIF conformant IP cameras
- Storage options 80-240TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
Key Features
What's Included
- Supports all ONVIF conformant IP cameras
- Storage options 80-240TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Supports all ONVIF conformant IP cameras
- Storage options 80-240TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput

Digital Watchdog
Digital Watchdog DW-BJRR2U100T6 BlackJack Rack, 100TB, Windows 10, R6
DW-BJRR2U100T6 | 6K-RR2U100T6
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

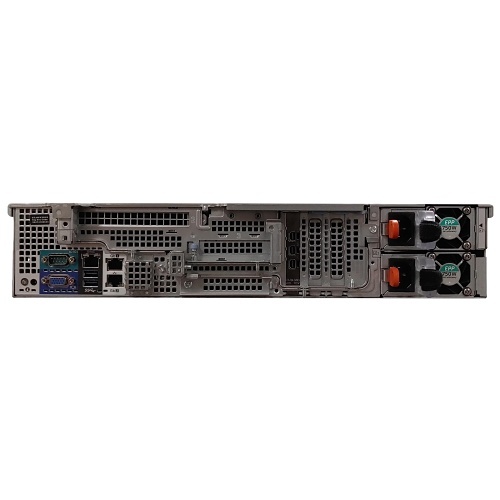

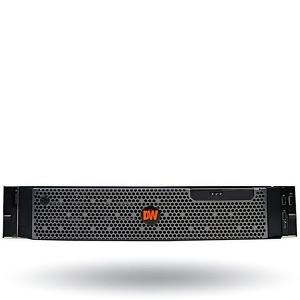

This single-processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The UL listed server includes Windows 10, Windows Server 2019 or Linux Ubuntu OS on a separate 240GB NVMe SSD. The 2U rack-mountable hardware features an Intel Xeon processor, 16GB memory, dual network cards, dual power supply, mini DisplayPort outputs and removable hot-swappable drives. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 240TB raw internal storage with RAID5 and is ONVIF conformant.
Main Features
- Supports all ONVIF conformant IP cameras
- Storage options 80-240TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, RAID6 Options
- Redundant power supply
- Dedicated GPU for client application for easy configuration
- Intel Xeon processor
- 2x 1G, 4 x 1G Ethernet ports
- Windows 10, Ubuntu Linux, Windows Server OS on
General Information
Name: Digital Watchdog DW-BJRR2U100T6 BlackJack Rack, 100TB, Windows 10, R6
Category: Digital Watchdog, Video Surveillance, Recording Devices, Security Storage & Servers, Network Video Recorders (NVRs), Video Surveillance Servers
UPC Code: 840407900240
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number 6K-RR2U100T6 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-BJRR2U100T6 Product Line Blackjack Product Model DW-BJRR2U100T6 Product Name Digital Watchdog DW-BJRR2U100T6 Blackjack Rack 2U 12-Bay NVR Server, 16GB RAM, Single Processor, Windows 10 OS, 100TB HDD Product Series Rack U Product Type Digital Video Recorder
-
Bluetooth No Storage Capacity 100TB Video Formats H.264, MJPEG
-
Recording Modes Continuous, Motion detection, Motion Plus Low Res, Motion Plus Object, Object Only
-
TAA Compliant Yes
-
RAID Levels RAID 6
-
HDMI No Number of USB Ports 1
-
Ethernet Yes Ethernet Technology 1 Gigabit Ethernet
-
Color Black Depth 28.4" Height 3.41" Width 18.97"
-
Hard Drive Capacity 100TB
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Country of Origin US Environmental Certification UL Environmentally Friendly Yes Operating System Compatibility Windows Package Contents keyboard, Mouse
