Belden 1583A 0101000 24AWG 4-Pair Multiconductor Cable, Solid, BC, Black
1583A 0101000
|7B-1583A1BLK
Shop All Belden
Belden 1583A 0101000 24AWG 4-Pair Multiconductor Cable, Solid, BC, Black
1583A 0101000 | 7B-1583A1BLK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

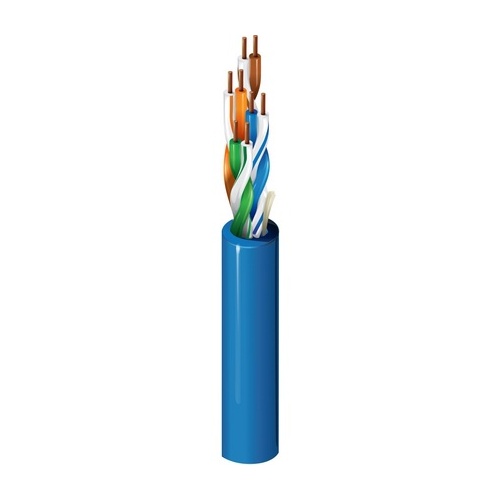

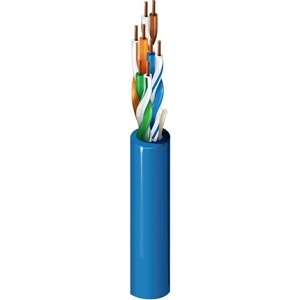

Category 5e Premise Horizontal Cable (200MHz), 4 Pair, 24 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket.
Main Features
- Category 5e Premise Horizontal Cable (200MHz)
- 4 Pair 24 AWG Solid Bare Copper Conductors
- U/UTP cable type
- Riser-CMR Rated
- PVC Jacket
General Information
Name: Belden 1583A 0101000 24AWG 4-Pair Multiconductor Cable, Solid, BC, Black
Category: Belden, Wire & Cable, Network Cables, Security & Access Control Cables, Category 5e Network Cables, Multiconductor Cables
UPC Code: 612825317661
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1583A1BLK Application/Usage Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE, PoE+, PoE++, Premise Horizontal Cable Brand Name Belden Country of Origin MX Manufacturer Part Number 1583A 0101000 Package Type Reel/Spool Packaged Quantity 305
American Wire Gauge 24AWG Cable Rating Riser Cable Type Category 5e Conductor Count 8 Conductor Material Bare Copper Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded solid
Operating Temperature (T-T) -20-75°C Storage Temperature (T-T) -20-75°C
Cable Length 1000.00' Color Black Insulation Material PE, PO, PP Jacket Material PVC
Voltage Rating 300V RMS
Length 1000.00'
ADI Part Number Replaces 7B-1583A010Z Model Number Replaces 1583A 010Z1000
Indoor/Outdoor Indoor
