Product Overview

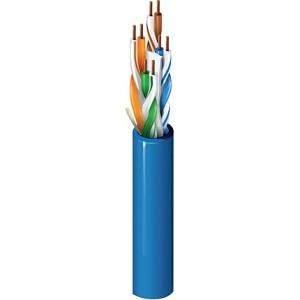

Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS
Jacket
General Information
Name : Belden 2413 005A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m) Reel-in-Box, Green , Belden
Category : Category 6 Network Cables
UPC Code : 612825061687
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 7B-2413005A1
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 2413 005A 1000
NDAA Compliant : No
Packaged Quantity : Box
Product Name : Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP
Product Type : Network Cable
Technical Information
American Wire Gauge : 23AWG
Cable Listing : CMP, FT6
Cable Type : Category 6+
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Device Supported : Network Device
Jacket Type : FT6, Plenum
Material : Bare Copper, PVC
Number of Conductors : 4
Number of Pairs : 4
Shielding : No
Lock
Cable Length (mm) : 304800
Media & Performance
Data Transfer Rate : 1 Gbit/s
Data Transfer Rate (Bps) : 131072000
Physical Characteristics
Cable Length : 1000'
Color : Green
Insulation Material : Fluorinated Ethylene Propylene (FEP) - Insulation
Miscellaneous
Environmental Certification : EU RoHS, REACH, RoHS 2
Environmentally Friendly : Yes
Features : Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Minimized Near-End Crosstalk (NEXT), PoE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power-sum Near End Crosstalk (PSNEXT)
