Belden 4694F B591000 18 Solid Polyethylene Double Layer Polyvinyl Chloride
4694F B591000
|7B-4694FB591
Shop all Belden
Belden 4694F B591000 18 Solid Polyethylene Double Layer Polyvinyl Chloride
4694F B591000 | 7B-4694FB591
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

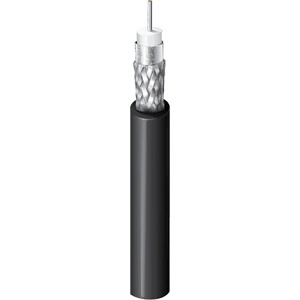

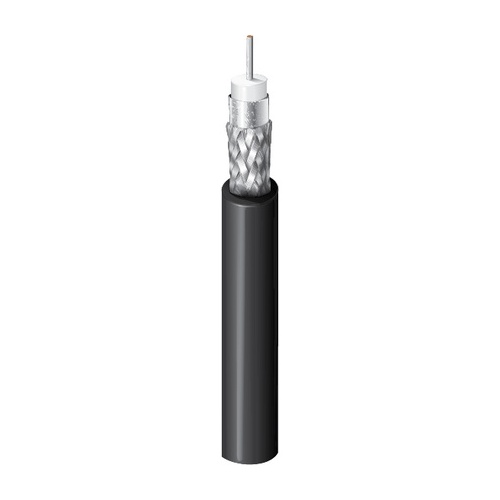

12 GHz Coax, 4K UHD Precision Flexible Video Cable, RG-6/U Type, 75 Ohm, 18 AWG solid .040" silver plated copper conductor, gas-injected foam HDPE insulation, dual tinned copper braid shield (95% coverage each), CM, PVC jacket.
Main Features
- Supports 12 GHz bandwidth for high-frequency signal transmission
- 4K UHD compatible precision flexible video cable
- RG-6/U type cable with 75 Ohm impedance
- 18 AWG solid .040" silver plated copper conductor
- Gas-injected foam HDPE insulation for signal integrity
- Dual tinned copper braid shield with 95% coverage each
- CM Rated for communication use
- Black PVC Jacket for durability and protection
General Information
Name: Belden 4694F B591000 18 Solid Polyethylene Double Layer Polyvinyl Chloride
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825424895
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-4694FB591 Brand Name Belden Manufacturer Part Number 4694F B591000 Packaged Quantity 305
American Wire Gauge 18AWG Application/Usage SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P Conductor Count 1 Conductor Material Silvered Copper Impedance 50 ohms Jacket Material PVC Number of Conductors 1 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) -30-75°C
Color Black Package Type Reel
Length 1000'
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
