Belden 5102U1 0101000 Security & Sound Cable, 4-Conductor 14 AWG, Water-Blocked, CL3-FPL-PLTC Rated, PVC Jacket, Black
5102U1 0101000
|7B-5102U1010
Shop All Belden
Belden 5102U1 0101000 Security & Sound Cable, 4-Conductor 14 AWG, Water-Blocked, CL3-FPL-PLTC Rated, PVC Jacket, Black
5102U1 0101000 | 7B-5102U1010
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

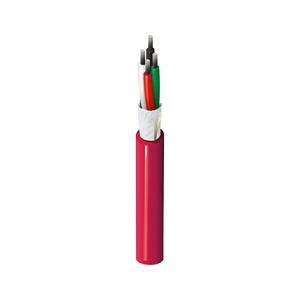

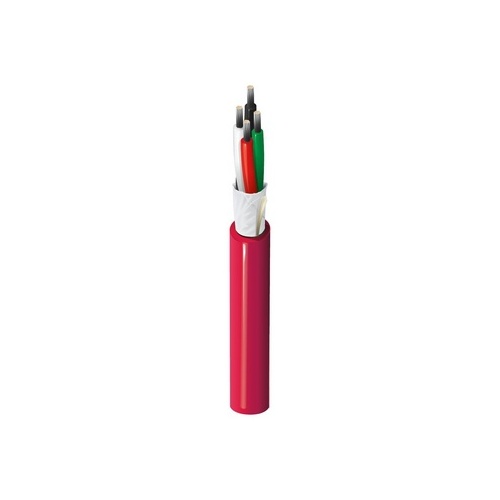

Security and Sound Cable, Rated-CL3-FPL-PLTC, 4-14 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord.
Main Features
- 4-conductor 14 AWG stranded tinned copper conductors
- PVC insulation on conductors
- Water-blocked with tape
- PVC jacket with ripcord
- CL3-FPL-PLTC rated for security and sound applications
- Color: Black
General Information
Name: Belden 5102U1 0101000 Security & Sound Cable, 4-Conductor 14 AWG, Water-Blocked, CL3-FPL-PLTC Rated, PVC Jacket, Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825156819
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-5102U1010 Brand Name Belden Manufacturer Part Number 5102U1 0101000 Packaged Quantity 305
American Wire Gauge 14AWG Application/Usage Audio/Speaker, Below-Grade Duct, Fire Alarm (Red Jkt), Intercom/PA, Power-Limited Controls, Security System, Wet Location Conductor Count 4 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 4 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 1000' Color Black Insulation Material PVC
Installation Type Burial
Country of Origin MX Indoor/Outdoor Indoor, Outdoor
