Belden 6300FE 009Z1000 18/2 Security & Commercial Audio Cable, CMP, BC, O/A Foil, 1000' (304.8m) ReelTuff Box, White

Brand: Belden
ADI #:7B-6300FE009 Model #: 6300FE 009Z1000  Name: Belden 6300FE 009Z1000 18/2 Security & Commercial Audio Cable, CMP, BC, O/A Foil, 1000' (304.8m) ReelTuff Box, White
  • Enhances audio quality and provides maximum control to the user
  • Features Bare Wire cable type to better accommodate your precise requirements with maximum productivity
  • Stranded feature for better usability and increased efficiency

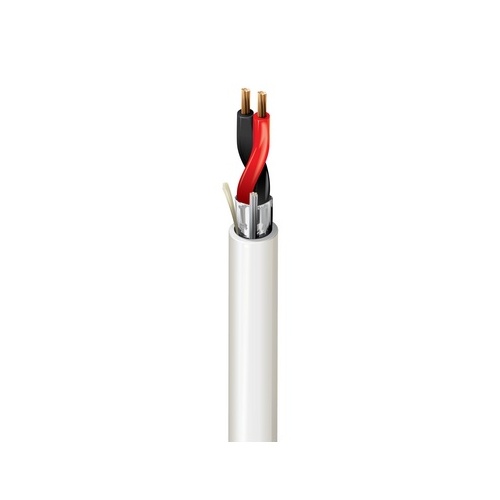

Image of 7B-6300FE009

Product Overview

Security & Commercial Audio Cable, Plenum-CMP, 2-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

General Information

Name : Belden 6300FE 009Z1000 18/2 Security & Commercial Audio Cable, CMP, BC, O/A Foil, 1000' (304.8m) ReelTuff Box, White , Belden
Category : Plenum Audio Cables
UPC Code : 612825423195

Specifications

General Information

ADI Part Number : 7B-6300FE009
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 6300FE 009Z1000
Product Name : Security & Sound, #18-2c, BC, O/A Foil, CMP
Product Type : Audio/Control Cable

Technical Information

American Wire Gauge : 24AWG
Cable Listing : CMP
Cable Type : Bare Wire
Device Supported : Intercom, Public Address System, Security System, Speaker
Jacket Type : CMP, FT6, Plenum
Number of Conductors : 2
Shielding : Yes
Solid or Stranded : Stranded

Lock

Cable Length (mm) : 304800

Physical Characteristics

Cable Length : 1000'
Color : White

Miscellaneous

Environmental Certification : EU RoHS, EU WEEE, RoHS
Environmentally Friendly : Yes
Features : Bendable, Stranded
