Belden 658AFS 000500 Plenum Access Control Cable, 22/3 Pair, 18/4, 22/6, Shielded, Banana Peel, CMP, 500' (152.4m) Reel, Orange, White, Blue, Gray

Brand: Belden
ADI #:7B-658AFS500 Model #: 658AFS 000500  Name: Belden 658AFS 000500 Plenum Access Control Cable, 22/3 Pair, 18/4, 22/6, Shielded, Banana Peel, CMP, 500' (152.4m) Reel, Orange, White, Blue, Gray
  • This control cable provides splendid performance and clear connectivity
  • Features Bare Wire cable type for optimal performance and better dependability
  • Flexible enough to offer a variety of options to suit a specific need

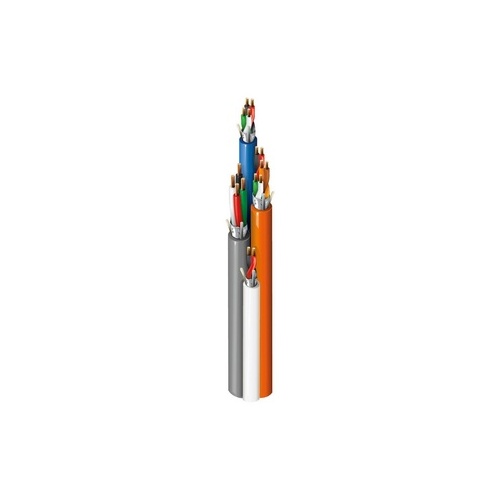

Image of 7B-658AFS500

Product Overview

Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest® insulation, Each cable has overall Beldfoil® shield and Flamarrest® jacket, Banana Peel® No overall jacket

General Information

Name : Belden 658AFS 000500 Plenum Access Control Cable, 22/3 Pair, 18/4, 22/6, Shielded, Banana Peel, CMP, 500' (152.4m) Reel, Orange, White, Blue, Gray , Belden
Category : Multiconductor Cables
UPC Code : 612825178620

Specifications

General Information

ADI Part Number : 7B-658AFS500
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 658AFS 000500
Packaged Quantity : 1
Product Name : Access Control, 16c (#22-3pr, #18-4c, #22-6c), Shielded, Banana Peel, CMP
Product Type : Control Cable

Technical Information

American Wire Gauge : 22AWG
Cable Rating : Plenum
Conductor Count : 3
Device Supported : Card Reader, Door Contact, Security Access Control System
Jacket Material : PVC
Number of Pairs : 3
Shielding : Yes

Physical Characteristics

Cable Length : 500'
Cable Length (mm) : 152400
Color : Blue, Gray, Orange, White
Insulation Material : PVC
Product Color : Blue, Gray, Orange, White
Product Material : Bare Copper

Miscellaneous

Environmental Certification : China Environmental United Certification Center (CEC), China RoHS 2, EU WEEE, RoHS 2
Environmentally Friendly : Yes
Features : Bendable, Stranded
