Product Overview
This 28AWG (Solid) Bare Copper Magnet Wire is designed for class 200 applications and features a polyester/amide-imide polymer insulation, offering high performance and durability. The wire consists of a single solid bare copper conductor with a nominal diameter of 0.0147" and a wall thickness of 0.002". This product is ideal for use in applications requiring high-temperature resistance and reliable electrical performance, making it a suitable choice for various magnet wire applications.
Main Features
- It has a maximum current rating of 0.23A in free air at 30°C
- Conductor resistance of 65.3 Ohms
- Capable of withstanding a minimum breakdown voltage of 4375V
- Operates within a temperature range of up to 200°C
General Information

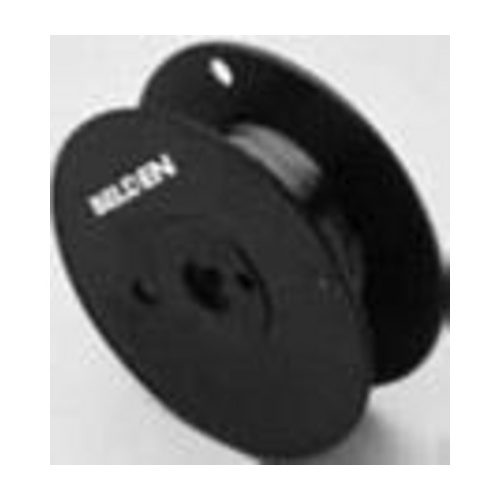

Name: Belden 8080 24AWG Solid Magnet Wire, Bare Copper, 1' Reel
Category: Belden, Wire & Cable, Security & Access Control Cables, Unjacketed & Zip Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-88 Brand Name Belden Manufacturer Part Number 8080
American Wire Gauge 28AWG Cable Type Category 6 Conductor Count 1 Conductor Material Bare Copper Number of Conductors 1 Shielding No Solid or Stranded Solid
Cable Length 1' Package Type Reel
Limited Warranty 10-Year
Country of Origin US
