Belden 9364 060U500 20AWG 1 Triad Multi-Conductor Cable Chrome, 500' (152.4m)
9364 060U500
|7B-9364060U5
Shop All Belden
Belden 9364 060U500 20AWG 1 Triad Multi-Conductor Cable Chrome, 500' (152.4m)
9364 060U500 | 7B-9364060U5
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

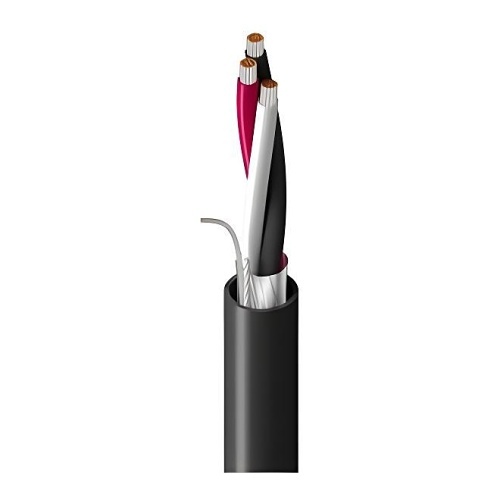

High Performance Instrumentation, 1 Triad 20AWG (19x32) Tinned Copper, PVC Insulation E1 Color Code, Overall Beldfoil Shield, PVC Outer Jacket, PLTC.
Main Features
- 20AWG 1 Triad Multi-Conductor Cable
- High Performance Instrumentation
- Tinned Copper with PVC Insulation
- E1 Color Code for Easy Identification
- Overall Beldfoil Shield for Protection
- Durable PVC Outer Jacket
- 500' (152.4m) Length
- PLTC Rated for Safety
General Information
Name: Belden 9364 060U500 20AWG 1 Triad Multi-Conductor Cable Chrome, 500' (152.4m)
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 312825239436
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number 7B-9364060U5 Brand Name Belden Manufacturer Part Number 9364 060U500 Packaged Quantity 152
American Wire Gauge 20AWG Application/Usage 0-10v, 4-20mA, Instrumentation, Positioners, RTD, Sensors, Valves Conductor Count 3 Conductor Material Tinned Copper Jacket Material PVC Material PVC, Tinned Copper Number of Conductors 3 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 500' Color Chrome Insulation Material PVC Package Type UnReel
Voltage Rating 300V
Installation Type Burial Length 500'
Limited Warranty 10-Year
Country of Origin MX Environmental Certification China RoHS, cUL, UL Environmentally Friendly Yes Indoor/Outdoor Indoor, Outdoor
