Product Overview

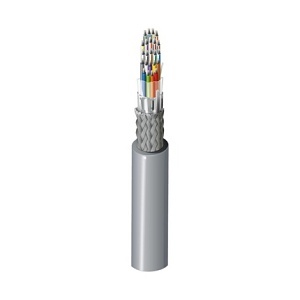

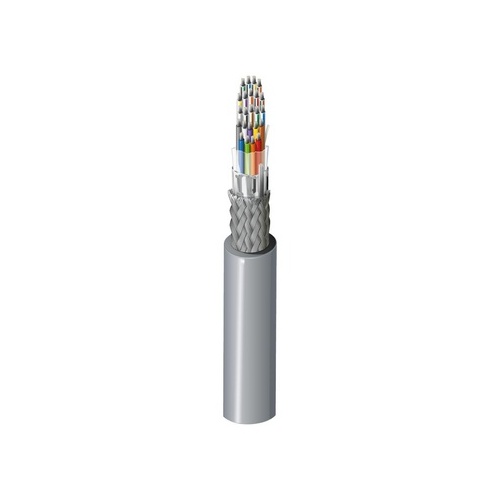

Computer EIA RS-488 Cable, 26 AWG stranded (7x34) and 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil (100% Coverage) Tinned copper braid shield (90% Coverage), drain wire, PVC jacket.
Main Features
- 23 Conductor IEEE 488 Cable
- Computer EIA RS-488 Compatible
- 26 AWG and 24 AWG Stranded Tinned Copper
- Semi-Rigid PVC Insulation
- Overall Beldfoil Shield (100% Coverage)
- Tinned Copper Braid Shield (90% Coverage)
- Includes Drain Wire
- Durable PVC Jacket
General Information
Name: Belden 96410081000 23 Conductor IEEE 488 Cable
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 7B-96418 Brand Name Belden Manufacturer Part Number 96410081000 Product Name IEEE-488, #26-6pr 10c, #24-1c, SR-PVC, O/A Foil Braid, PVC Jkt, CMG Product Type Multi-Pair Cable Weight 74 lbs
-
American Wire Gauge 26AWG Number of Conductors 10 Number of Pairs 6 Shielding Braid Solid or Stranded Stranded
-
Application/Usage IEEE 488 interface, Computer communications, Low voltage analog signals (4-20ma, 0-10v), Low voltage digital control (24V), Line level audio, Panel wiring Cable Length 1000' Color Gray Package Type Reel
