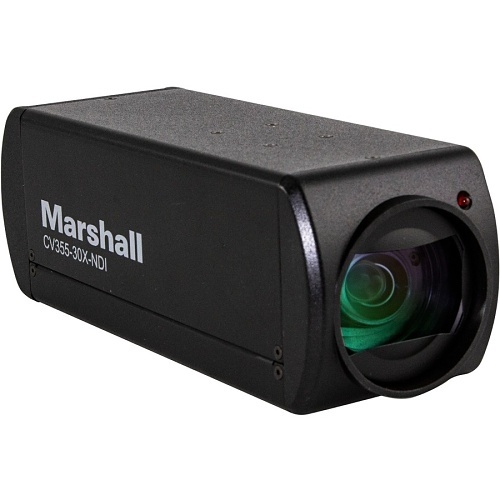

Marshall CV355-30X-NDI IHX 8.5MP NDI Box Camera, 30X Optical Zoom
CV355-30X-NDI
|99-CV35530XN
Marshall CV355-30X-NDI IHX 8.5MP NDI Box Camera, 30X Optical Zoom
CV355-30X-NDI | 99-CV35530XN
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The CV355-30X-NDI 30X optical zoom NDI® camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920x1080p at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.
30X Optical Zoom
The 30X optical zoom block offers an extensive zoom range from 4.6mm to 135mm starting at 68° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to tight shots.
NDI® Workflow
To keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization. NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.
Low-light Sensitivity
The CV355-30X-NDI operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
NDI® Network
Ideal for use in NDI® networked and A/V installations, the CV355-30X-NDI offers the convenience of NDI®|HX2., 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding.
Main Features
- 8 Megapixel (1/2.5") HD sensor
- 30X Optical Zoom (4.6~135mm) - 68° AOV
- Up to 1920x1080 and 1280x720p
- Frame rates: 59.94/50/29.97/25fps
- NDI®|HX2., 3G/HDSDI, and HDMI 2.0 simultaneous outputs
- Ethernet I/O supports video, control, and PoE over a single cable
- RS232 and 3.5mm audio input with passthrough
- NDI® discoverable, controllable, manageable via NDI®Tools
General Information
Specifications
ADI Part Number 99-CV35530XN Brand Name Marshall Electronics Manufacturer Marshall Electronics, Inc Manufacturer Part Number CV355-30X-NDI Product Model CV355-30X-NDI Product Name CV355-30X-NDI HD60 30x with NDI & 3GSDI Product Type Network Camera
Aspect Ratio 16:9 Connectivity Technology Wired Effective Camera Resolution 8MP Field of View Diagonal, Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 60fps Minimum Focal Length 4.60mm Optical Zoom 30.0x Video Formats H.264, H.265, MJPEG
Maximum Video Resolution 1920 x 1080
HDMI Yes Network (RJ-45) Yes
Lens Included Yes Maximum Focal Length 135.00mm
Remote Management Yes
Input Voltage 12V DC
Recording Formats Full HD
Analog Video Signal Format 3G/HD-SDI, NDI Maximum Resolution 1920 x 1080
Indoor/Outdoor Outdoor
