Product Overview

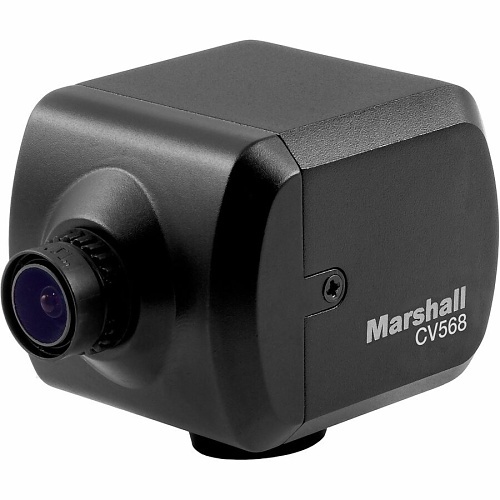

The compact and versatile CV568 Miniature 1080p 3G-SDI/HDMI Camera with Global Shutter & Genlock from Marshall Electronics captures at frame rates up to 60p, and its tiny size makes it ideal for a POV camera.
General Information
Name : Marshall CV568 Miniature Global Camera, 4.4mm Interchangeable M12 Lens Black , Marshall Electronics
Category : Video Production
UPC Code : 801813194135
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 99-CV568
Brand Name : Marshall
Manufacturer : Marshall
Manufacturer Part Number : CV568
Product Model : CV568
Product Name : CV568 Miniature Global Camera with Genlock
Product Type : Miniature HD Camera
Technical Information
Effective Camera Resolution : 3.2MP
Field of View : 84° angle of view
HD Recording : Yes
Lens Mount Type : M12-mount
Lens Type : Fixed
Maximum Focal Length (mm) : 4.4
Maximum Frame Rate : 60 fps
Camera
Maximum Illumination (lux) : 0.5
Display & Graphics
Effective Camera Resolution (Pixel) : 3200000
Maximum Illumination : 0.5 lux
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Maximum Operating Temperature (°F) : 122
Minimum Operating Temperature : 14°F (-10°C)
Minimum Operating Temperature (°F) : 14
Interfaces/Ports
HDMI : Yes
Lens
Lens Included : Yes
Maximum Focal Length : 4.40 mm
Physical Characteristics
Color : Black
Storage
Recording Formats : Full HD
Video
Maximum Frame Rate (fps) : 60
Warranty
Limited Warranty : 1 Year
Miscellaneous
Features : Built-in Microphone, Digital Image Stabilization, Digital Noise Reduction
