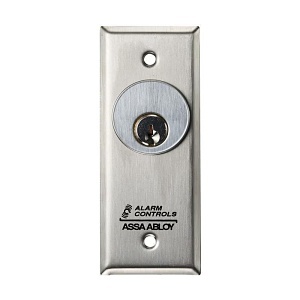

Alarm Controls MCK-1-4 MCK Series Mortise Cylinder Key Switch Station, Single Gang, SPDT Alternate
MCK-1-4|AC-MCK14
Alarm Controls MCK-1-4 MCK Series Mortise Cylinder Key Switch Station, Single Gang, SPDT Alternate
MCK-1-4|AC-MCK14
Alarm Controls by ASSA ABLOY
Alarm Controls MCK-1-4 MCK Series Mortise Cylinder Key Switch Station, Single Gang, SPDT Alternate
MCK-1-4 | AC-MCK14
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
MCK Series Mortise Cylinder Stations
Narrow or single gang mortise cylinder keyswitch stations. Choose between momentary action switch that remains active as long as it’s depressed, or alternate action switch that alternates between open (disconnected) and closed (connected) each time it's pressed. Available with LED options.
MainFeatures
- Stainless steel wall plate accepts standard 1-1/8” mortise cylinder
- Tamper-proof and slotted head screws included
- Mortise Cylinders not included, available separately (CY-1, CY-1A)
Options
- Momentary or alternate switch, see model chart
- SPDT or DPDT, see model chart
- No LED, green LED, green and red LEDs, see model chart
- Pneumatic time delay: 2 to 45 seconds, see model chart
- AddWPfor weather resistant cover and surface mount box. Available for single gang models only.
Specifications
- Contacts rated 4A at 28 VDC
- LEDs operate on 12 or 24 VDC/VAC
- Switch depth behind plate: 1-1/4”
- Switches terminated in colored leads
- Operating Temperature:+15 to 120F
Main Features
- Single gang mortise cylinder keyswitch station
- SPDT alternate action switch
- Stainless steel wall plate
- Tamper-proof and slotted head screws included
- Momentary or alternate switch options
- Available with LED options
- Contacts rated 4A at 28 VDC
- LEDs operate on 12 or 24 VDC/VAC
- Switch depth behind plate: 1-1/4”
- Operating Temperature: +15 to 120F
General Information
Name: Alarm Controls MCK-1-4 MCK Series Mortise Cylinder Key Switch Station, Single Gang, SPDT Alternate
Category: Alarm Controls by ASSA ABLOY, Access Control, Locking Devices, Key Switches
UPC Code: 604840990141
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AC-MCK14 Brand Name Alarm Controls by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number MCK-1-4 Product Model MCK-1-4 Product Name MCK-1-4 Mortise Key Switch Product Series MCK Product Type Mortise Key Switch Switch Action DPDT Alternate
-
Application/Usage Mortise Cylinder Form Factor Wall Mount Material Details Stainless Steel - Wall Plate
Product Material Stainless Steel Width 1.8" Width (mm) 44.45
-
Limited Warranty Lifetime
-
Compatibility Alarm Controls Mortise Cylinders: CY-1 CY-1A Package Contents - MCK-1-4 Mortise Key Switch
- Tamper-Proof And Slotted Head Screws
